DTC P2227: Barometric Pressure (BARO) Sensor Range/Performance Problem: Notes

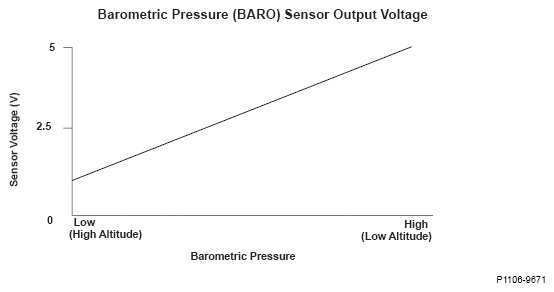

Fig 1: Barometric Pressure (BARO) Sensor Voltage - Graph
G04838584

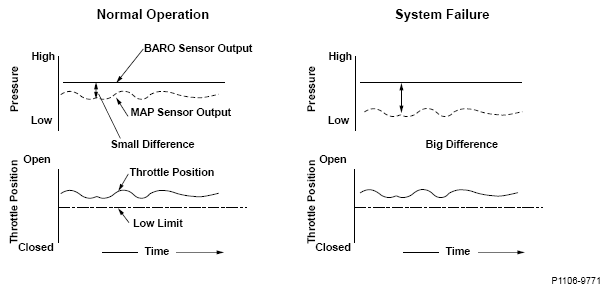

Fig 2: Barometric Pressure (BARO) Sensor Throttle Position - Graph
G04838585
