Brake Pedal Position Switch Connector End View

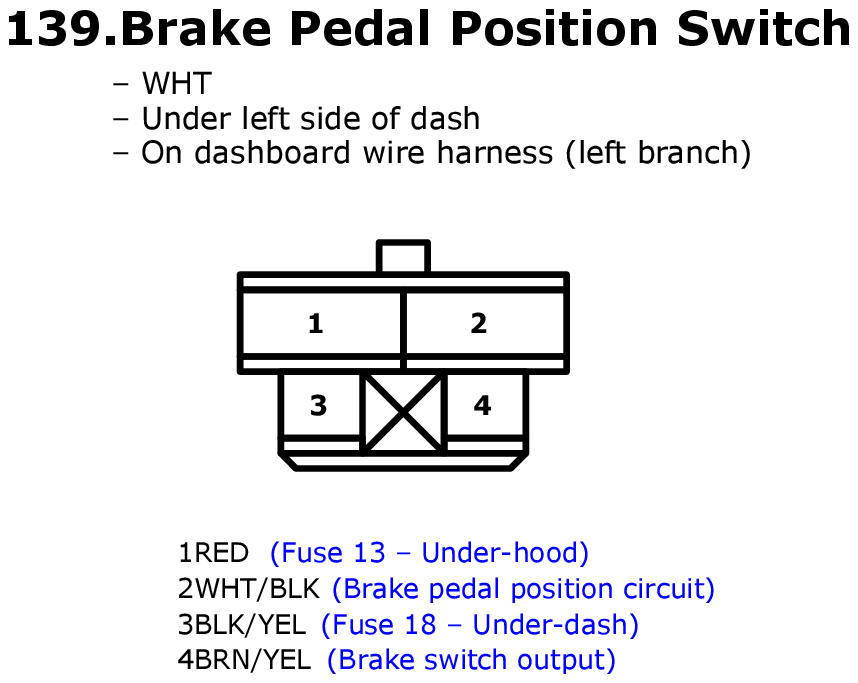

Fig 1: Brake Pedal Position Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
