Control Module HVAC: Locations

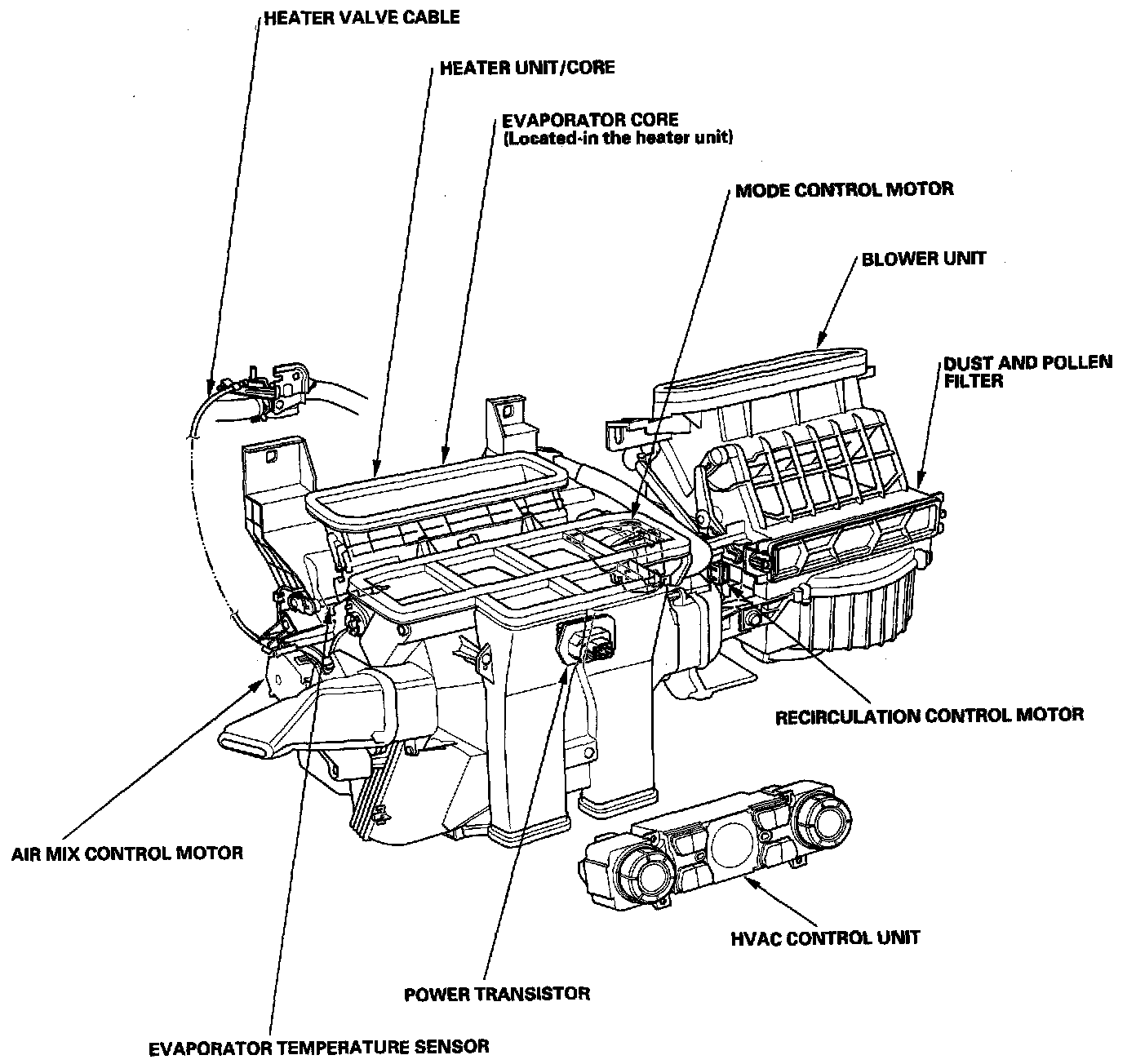

Heating/Air Conditioning Component Location Index:

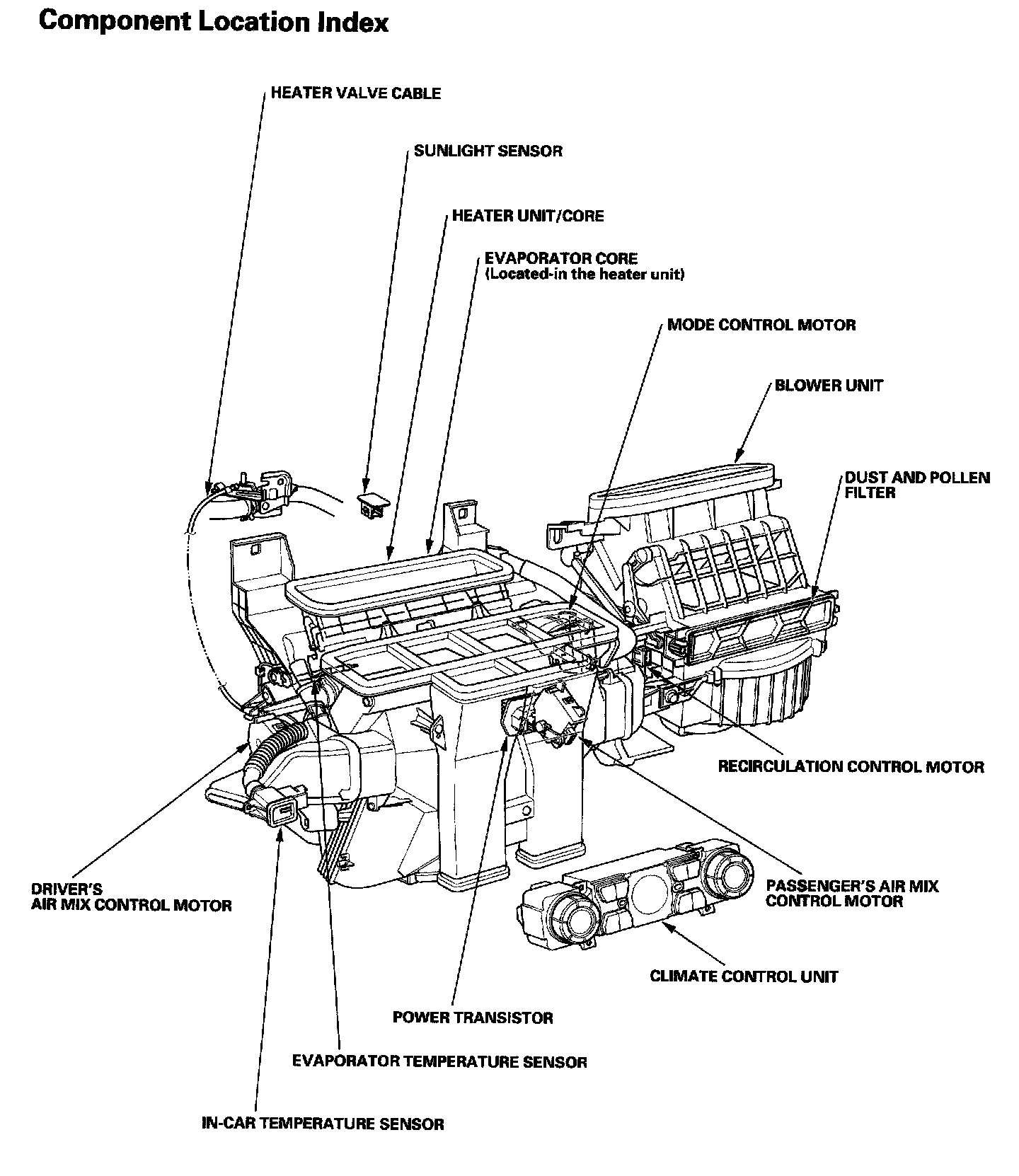

Climate Control Component Location Index:
