System Specifications
Crankshaft PulleyTighten the bolt 64 Nm (6.5 kgf-m, 47 lbf-ft)
Use a torque wrench and heavy duty 19 mm socket.
Lower cover

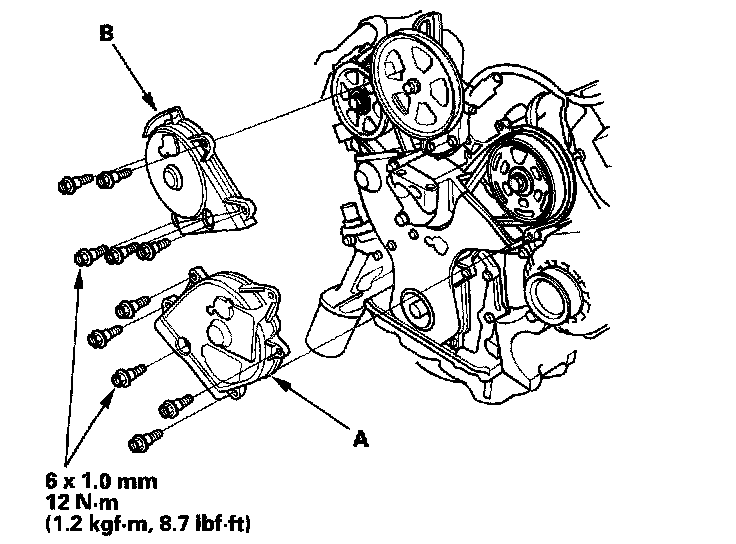

Front upper cover (A) and rear upper cover (B)
Timing Belt Tensioner Torque
Tighten the bolt 64 Nm (6.5 kgf-m, 47 lbf-ft)
Use a torque wrench and heavy duty 19 mm socket.
Lower cover
Front upper cover (A) and rear upper cover (B)
Timing Belt Tensioner Torque
