ECM/PCM Electrical Connections

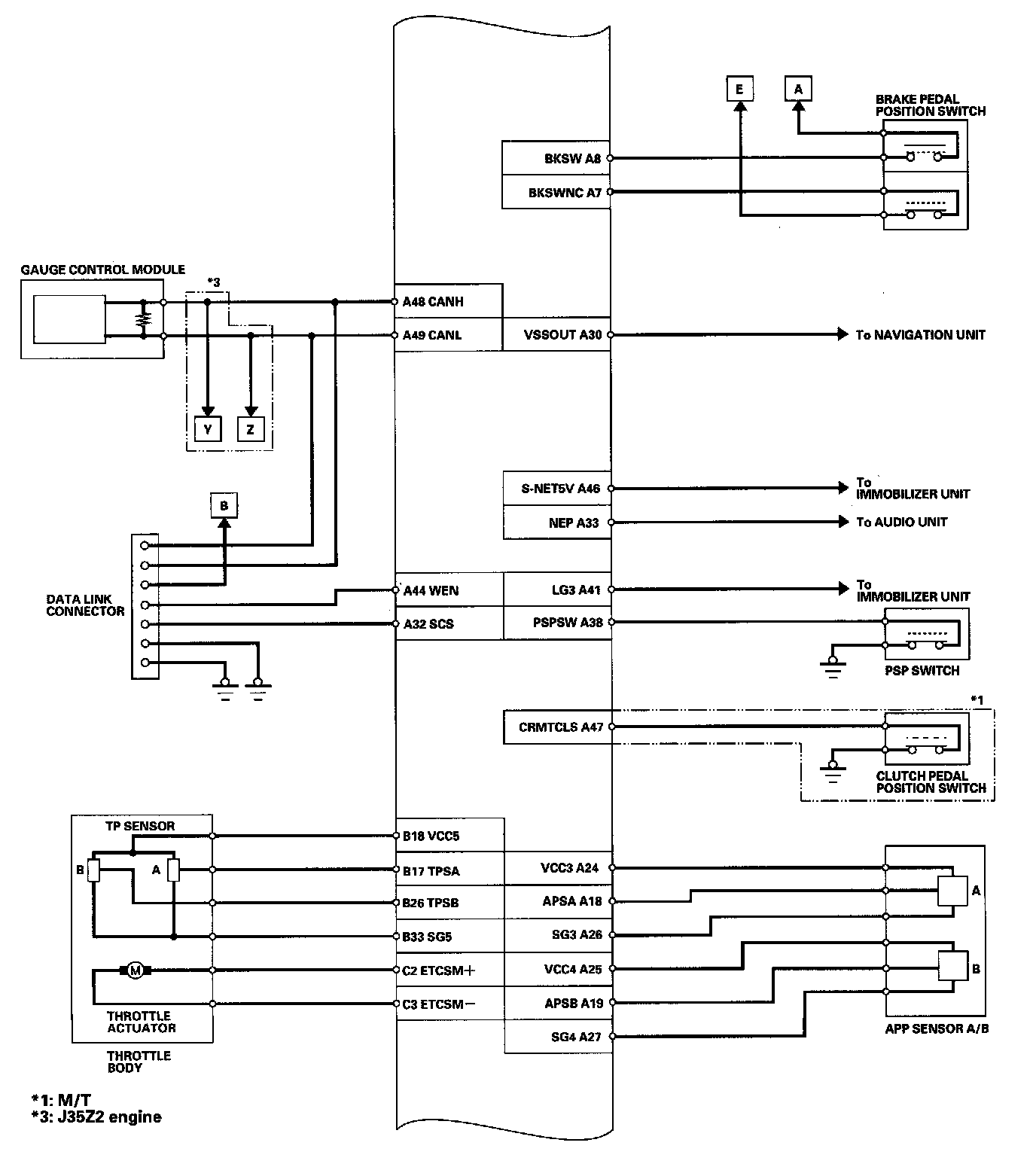

ECM/PCM Electrical Connections (Part 1):

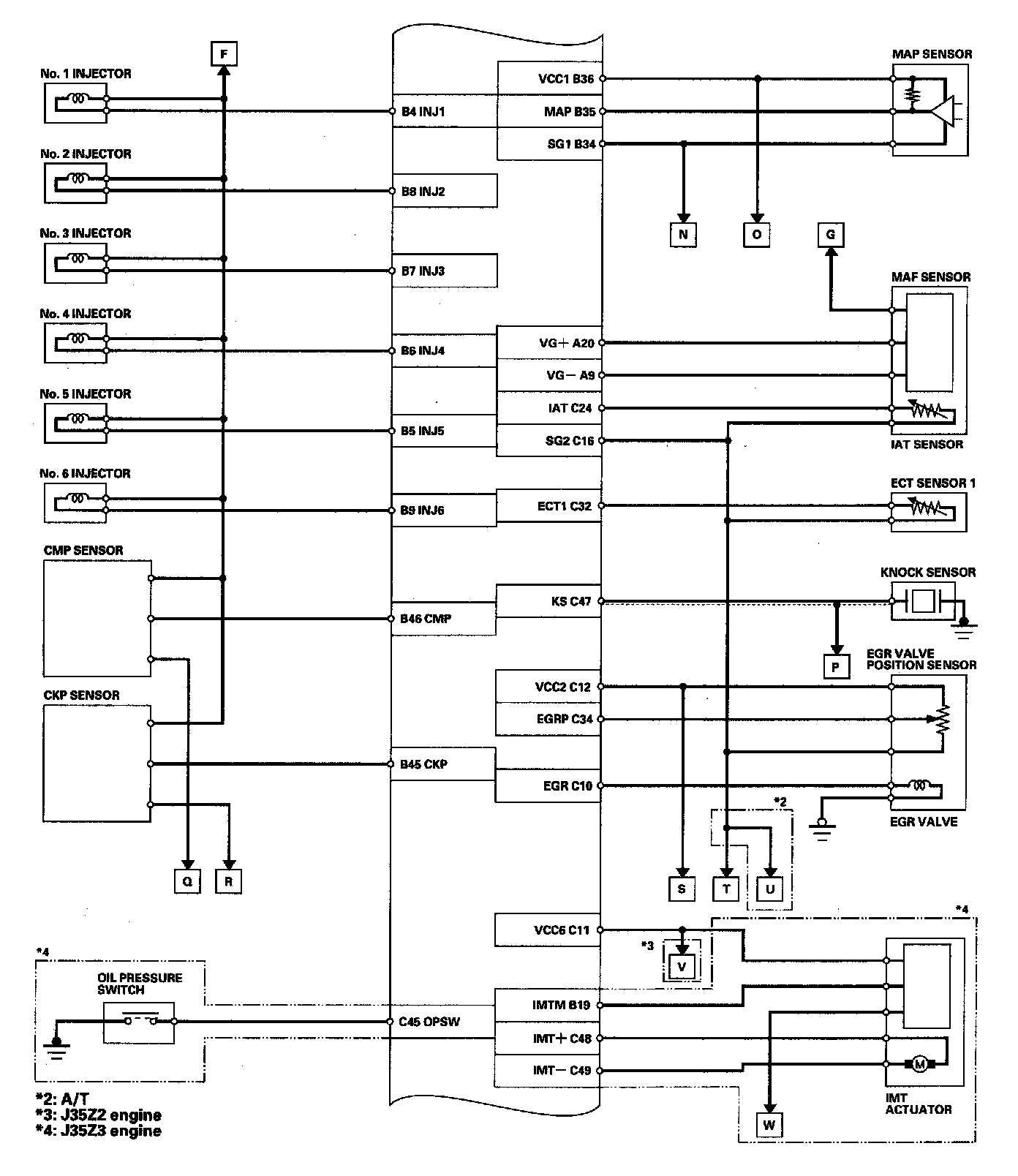

ECM/PCM Electrical Connections (Part 2):

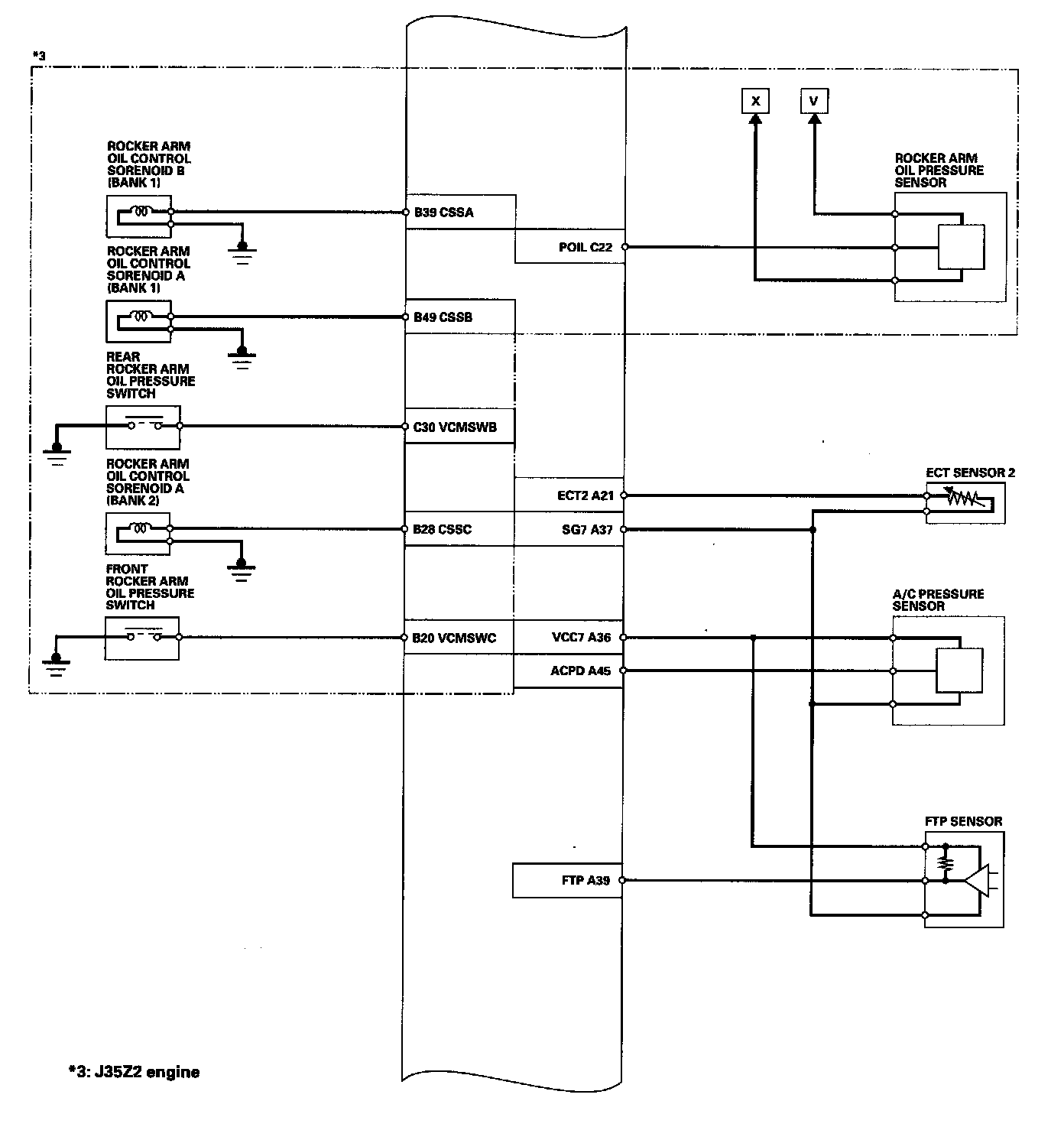

ECM/PCM Electrical Connections (Part 3):

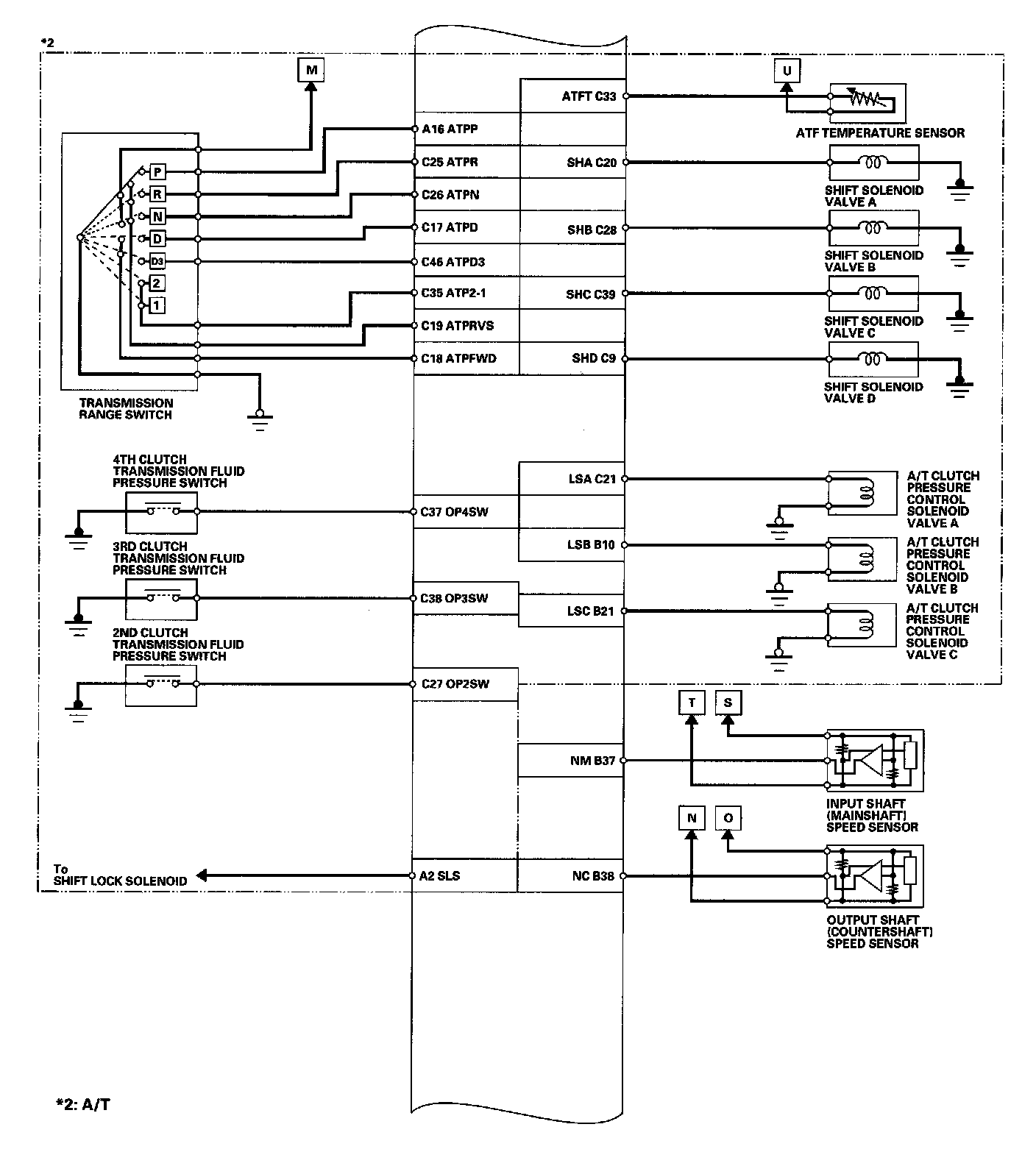

ECM/PCM Electrical Connections (Part 4):

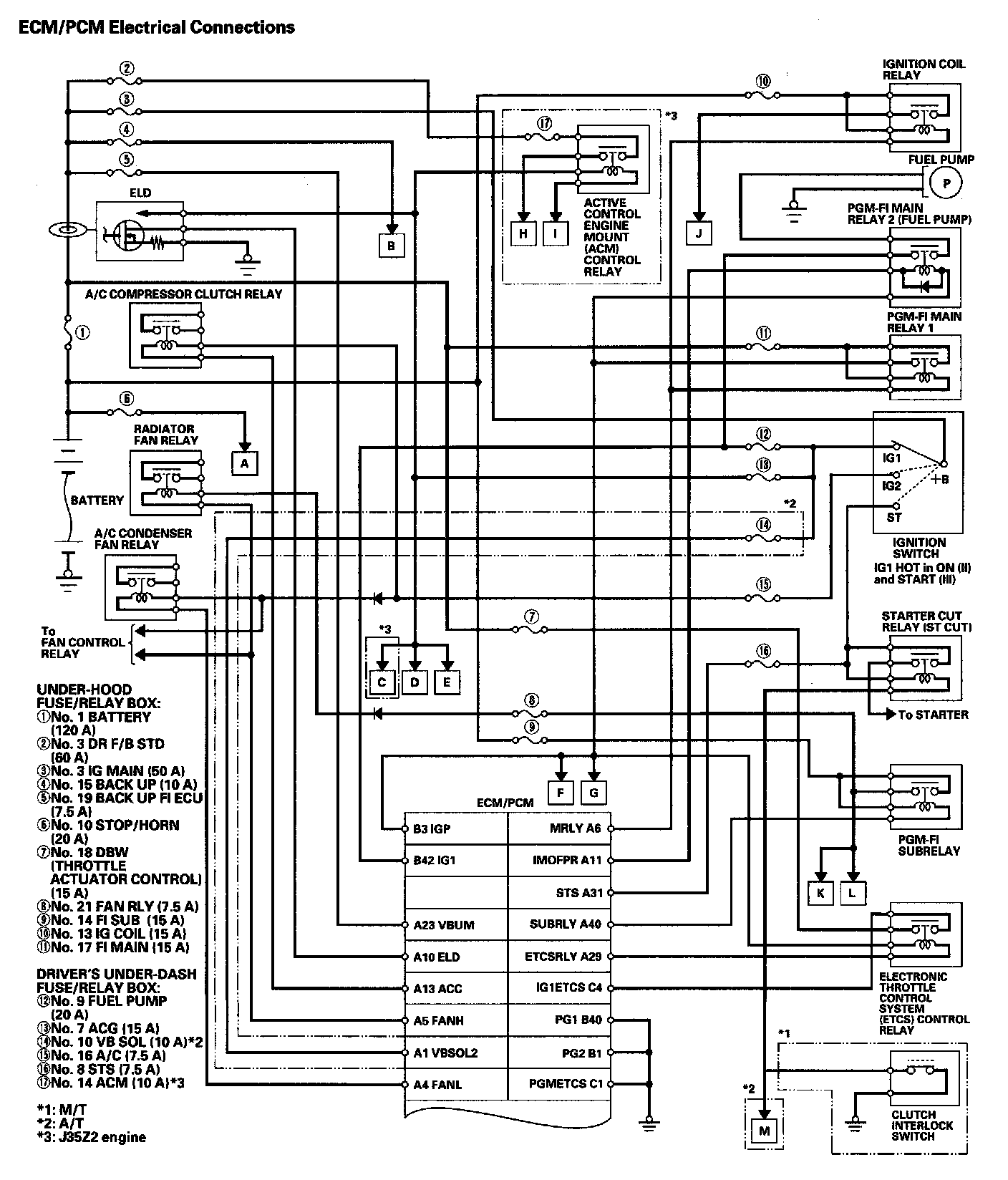

ECM/PCM Electrical Connections (Part 5):

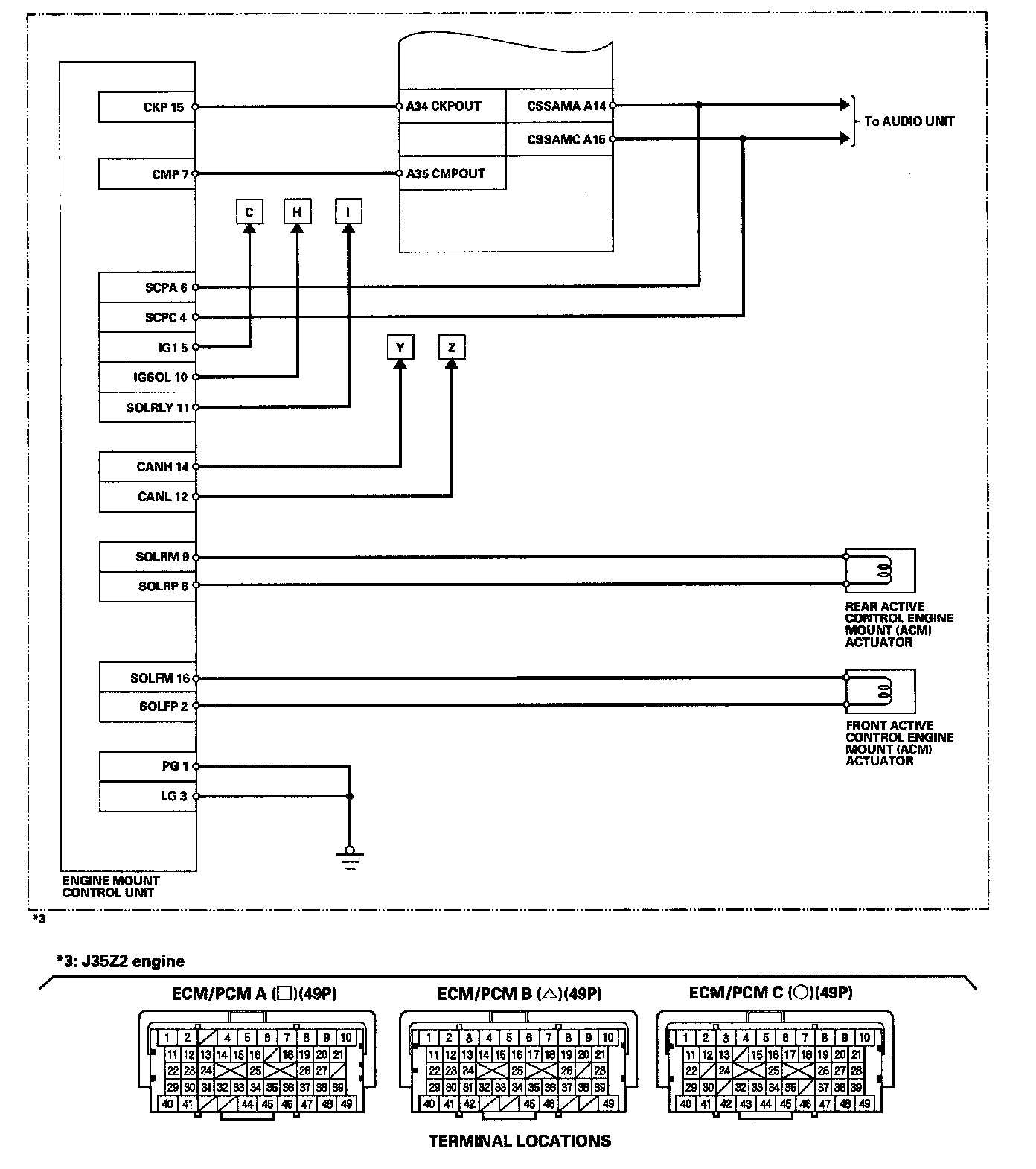

ECM/PCM Electrical Connections (Part 6):

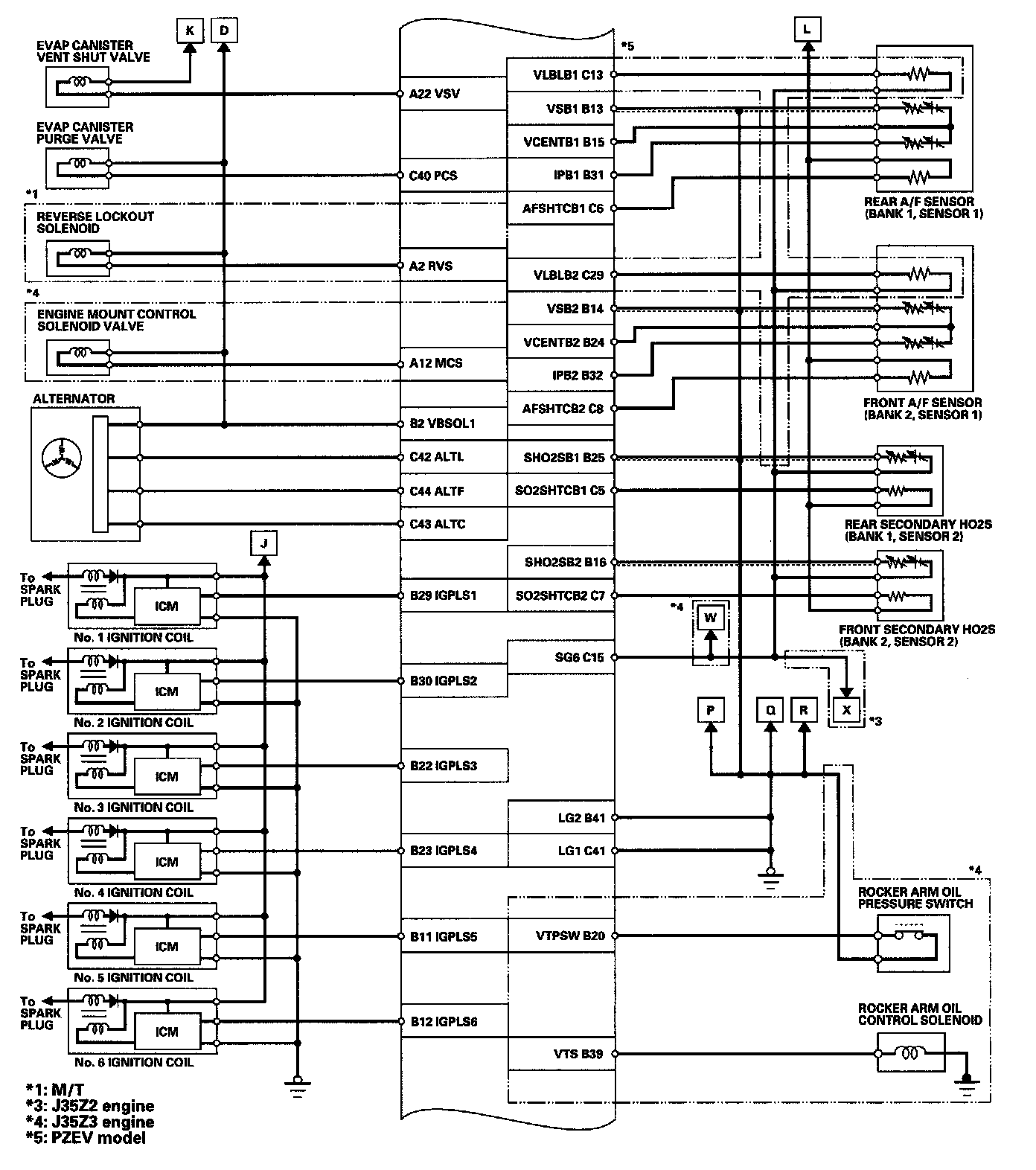

ECM/PCM Electrical Connections (Part 7):
