Air Cleaner Removal/Installation

  1. Do the battery removal procedure (see REMOVAL ).
  2. Disconnect the MAF sensor/IAT sensor connector (A).

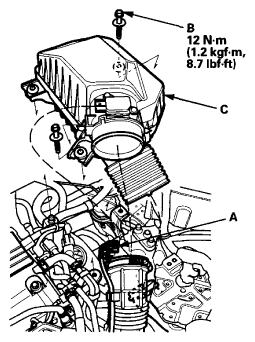

    Fig 1: Maf Sensor/Iat Sensor Connector And Air Cleaner With Torque Specification
    G06610116Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B).
  4. Remove the air cleaner (C).
  5. Install the parts in the reverse order of removal.
  6. Do the battery installation procedure (see INSTALLATION ).
