Transfer Case

Transfer Assembly

With Manual Transmission

M/T Transfer Assembly:

With Automatic Transmission

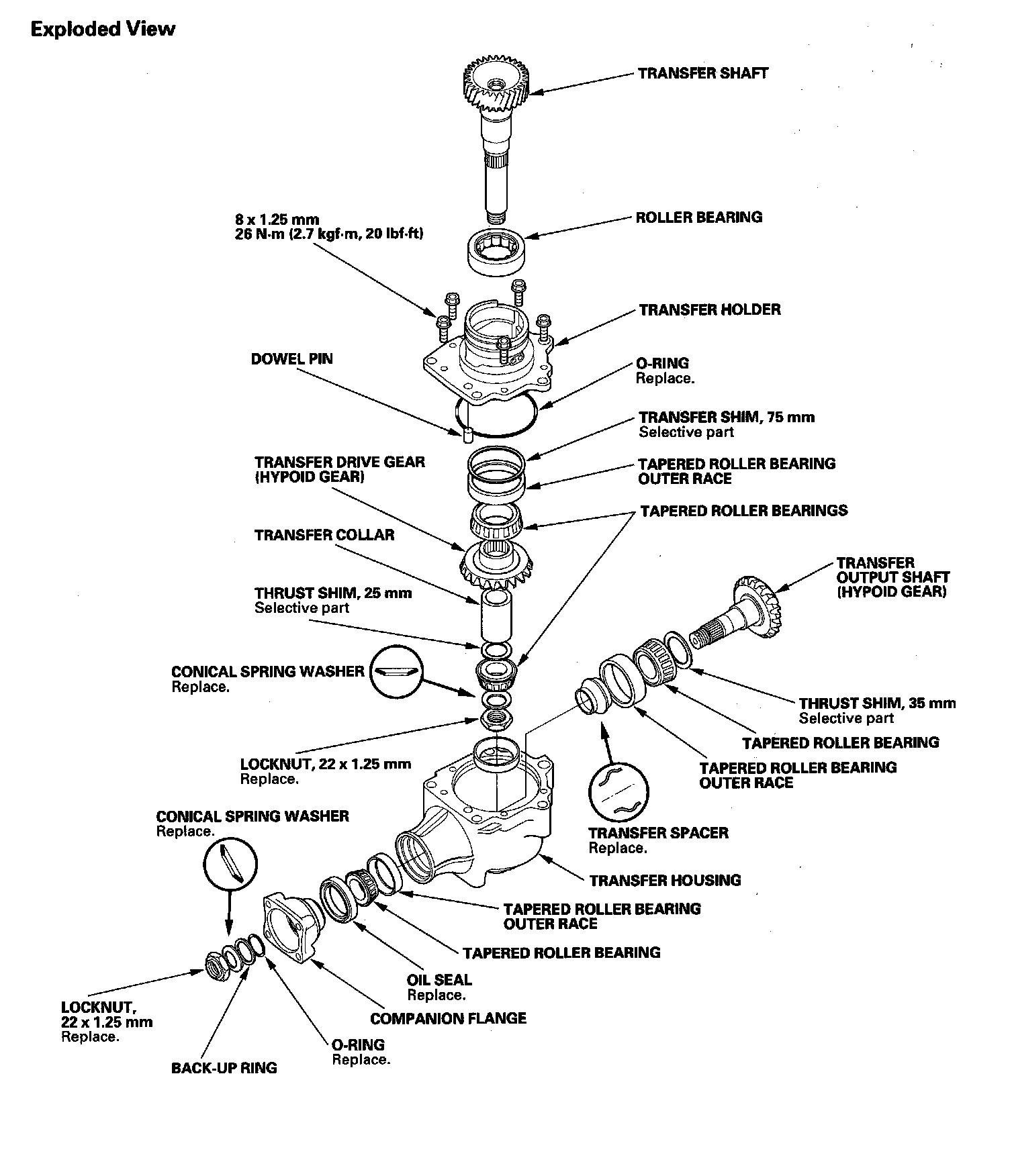

A/T Transfer Assembly:

For information regarding Transmission Overhaul Specifications please refer to Service and Repair Overhaul
