DTC P0369 (8): Camshaft Position (CMP) Sensor Circuit Intermittent Interruption (A/T): Notes

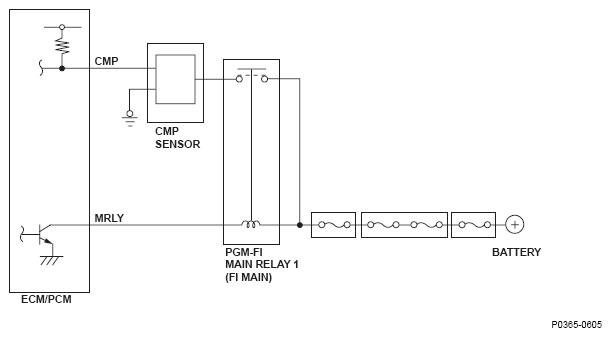

Fig 1: Camshaft Position (CMP) Sensor Circuit Intermittent Interruption - Circuit Diagram
G05616580
