Park Pin Switch (A/T) Connector End View

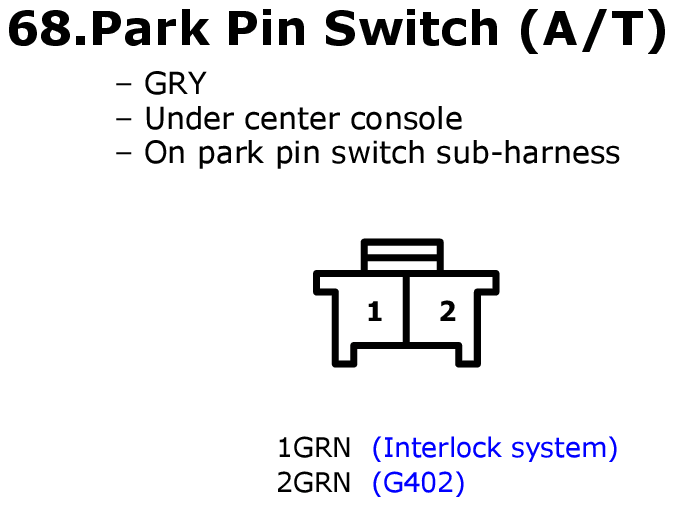

Fig 1: Park Pin Switch (A/T) Connector End View
GHHW4017Courtesy of AMERICAN HONDA MOTOR CO., INC.
