DTC P0705 (5): Short in Transmission Range Switch Circuit (Multiple Shift-position Input) (A/T): Notes

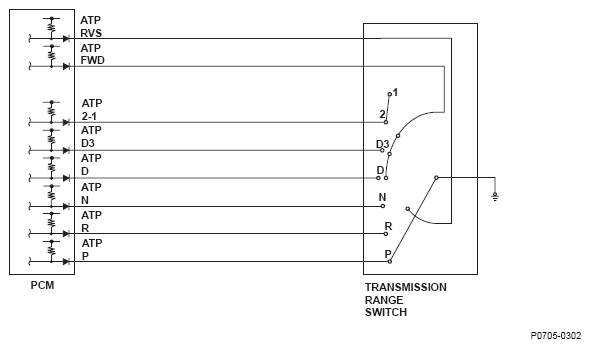

Fig 1: Short In Transmission Range Switch Circuit (Multiple Shift-Position Input) - Circuit Diagram

Transmission range switch contact point input matrix

SHIFT LEVER POSITION CHART

Shift lever position	Input per switch
	P	R	RVS	N	D	D3	2 / 1	FWD
P	◦	X	X	X	X	X	X	X
R	X	◦	◦	X	X	X	X	X
N	X	X	X	◦	X	X	X	X
D	X	X	X	X	◦	X	X	◦
D3	X	X	X	X	X	◦	X	◦
2	X	X	X	X	X	X	◦	◦
1	X	X	X	X	X	X	◦	X
◦: Closed X: Open
