Instrument Panel Control Module: Locations

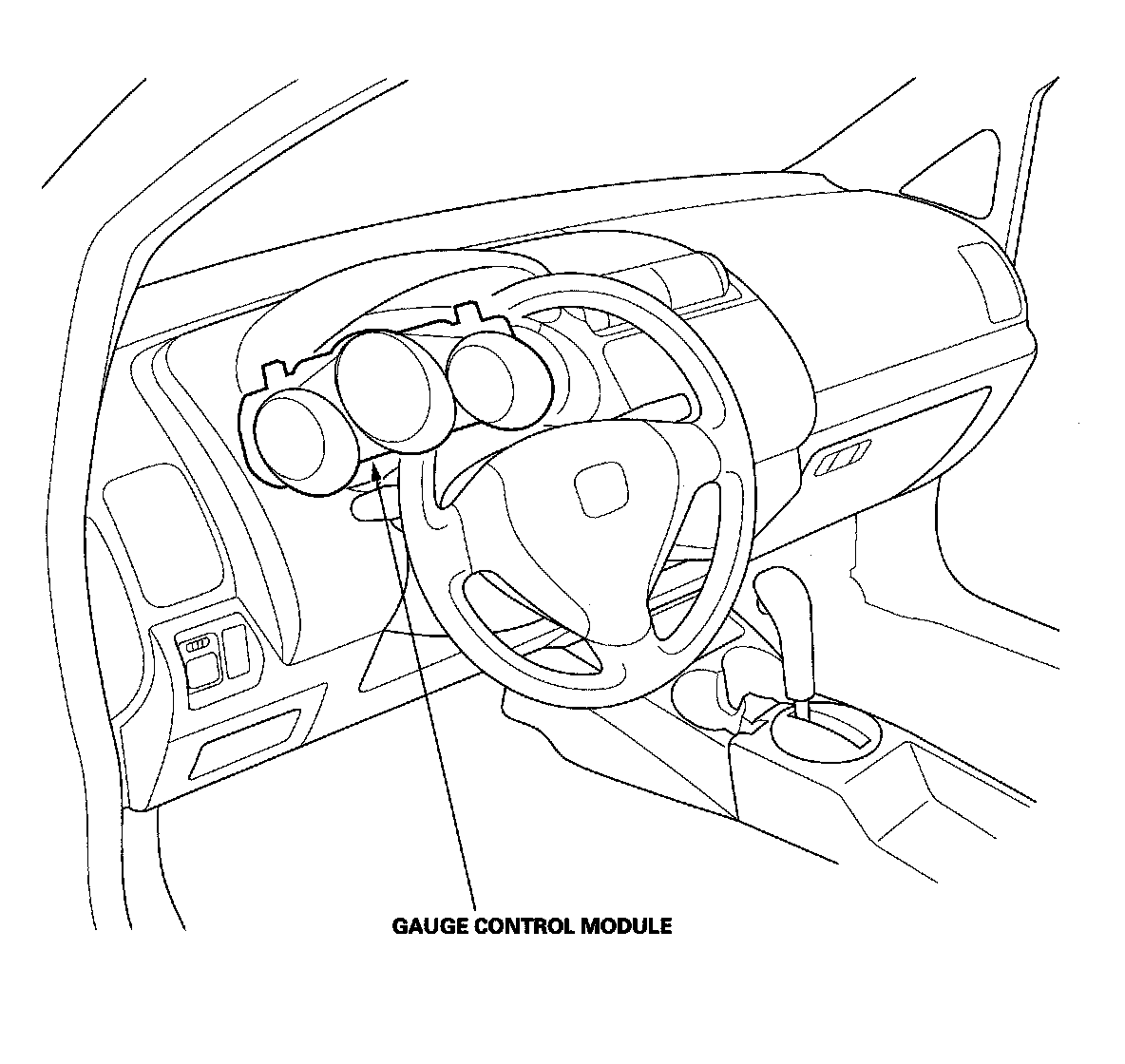

39. Behind Gauge Control Module:

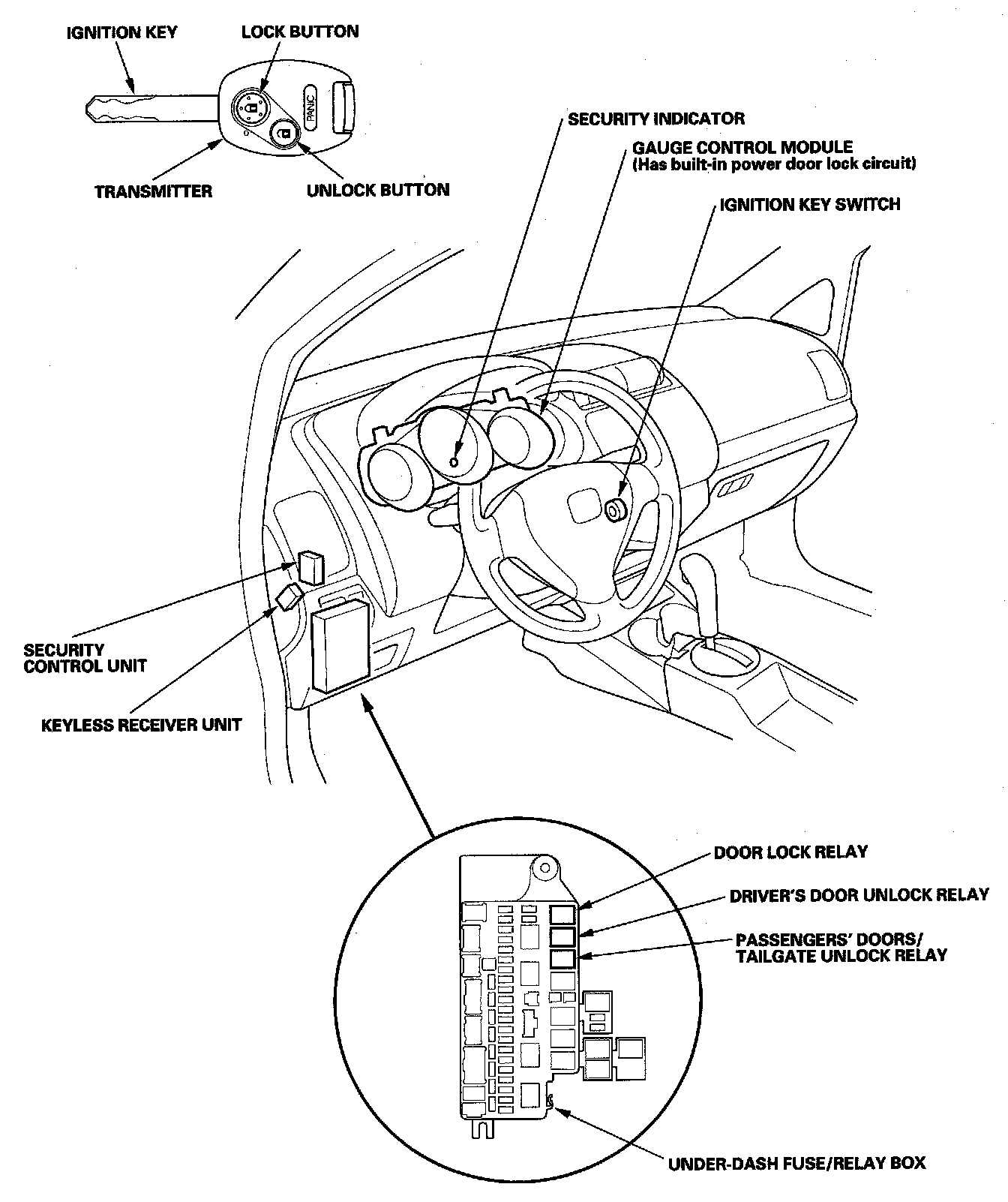

Keyless/Power Door Locks/Security System Component Location Index:



Gauges Component Location Index:
