General Specifications

Main bearing cap
Tighten the bearing cap bolts in sequence 25 Nm (2.5 kgf-m, 18 lbf-ft)





Tighten the bearing cap bolts an additional 40°

Crankshaft Pulley
-1 Hold the pulley with the holder handle (A) and pulley holder attachment (B), then tighten the bolt to 37 Nm (3.8 kgf-m, 27 lbf-ft) with a torque wrench and a heavy duty 19 mm socket (C). If the pulley bolt or crankshaft are new, tighten the bolt to 177 Nm (18.0 kgf-m, 130 lbf-ft), then remove the bolt and tighten it to 37 Nm (3.8 kgf-m, 27 lbf-ft).
-2 Mark the bolt head (D) and the crankshaft pulley (E) as shown, then tighten the bolt an additional 90° (The mark on the bolt head should line up with the mark on the crankshaft pulley).

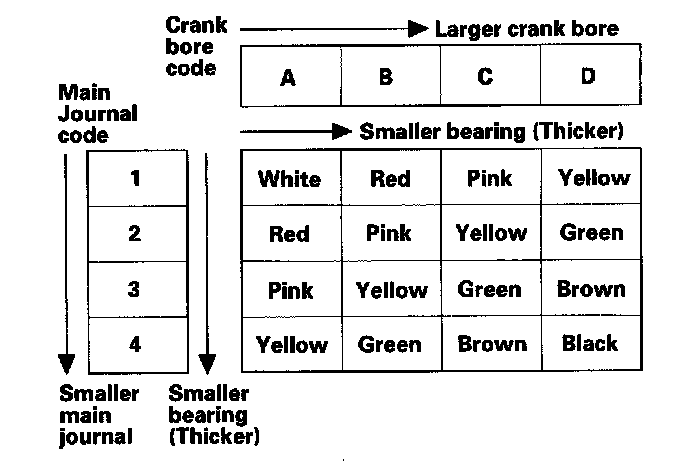

Main bearing size codes
