Parking/Back-up Sensor Control Unit (Touring) Connector End View

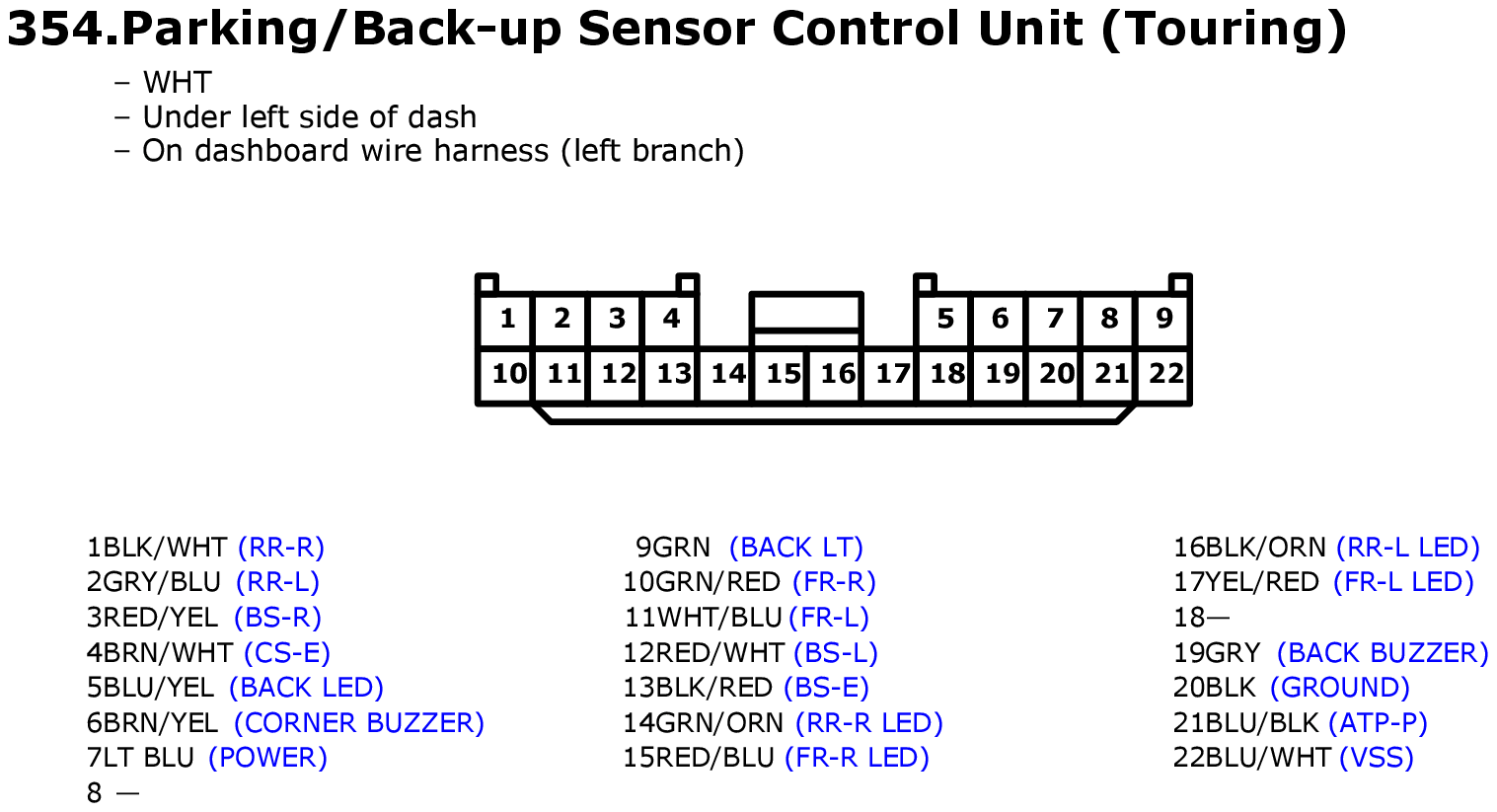

Fig 1: Parking/Back-up Sensor Control Unit (Touring) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
