Voice Control Switch (USA EX-L: RES/Navigation) Connector End View

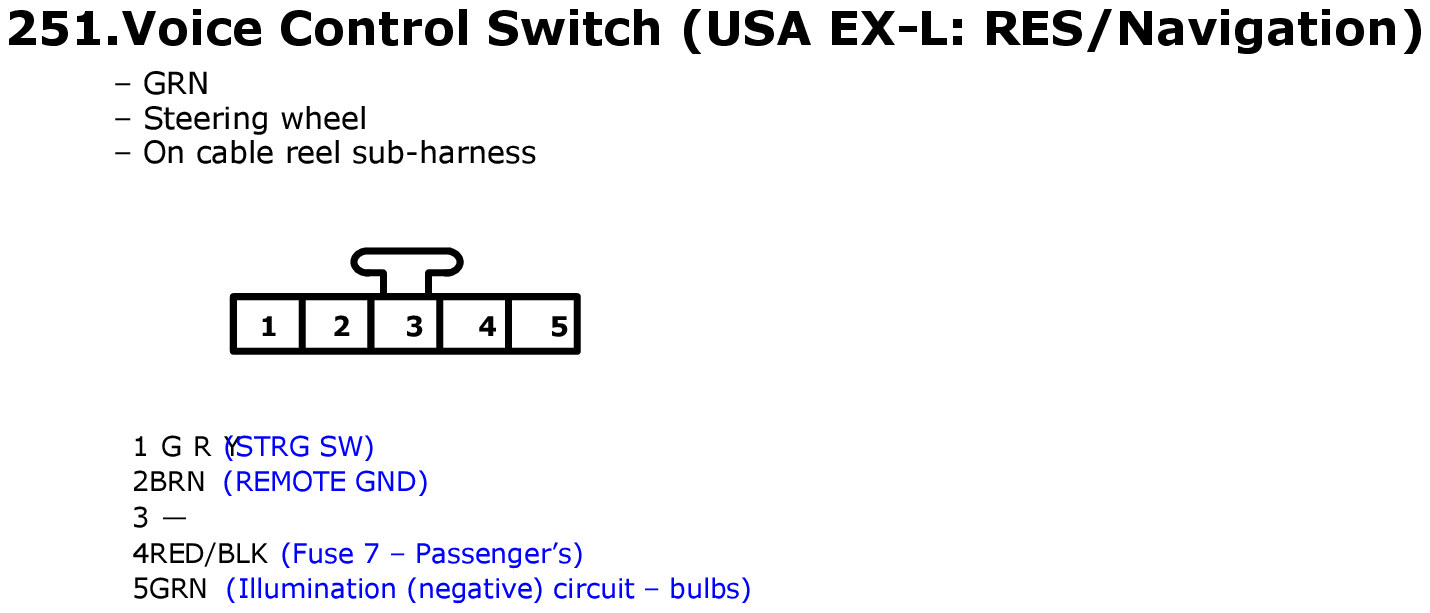

Fig 1: Voice Control Switch (USA EX-L: RES/Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
