Keyless Entry: Service and Repair

CESS Articulated Harness Replacement

1. Remove the sliding door panel, and rear side trim panel.

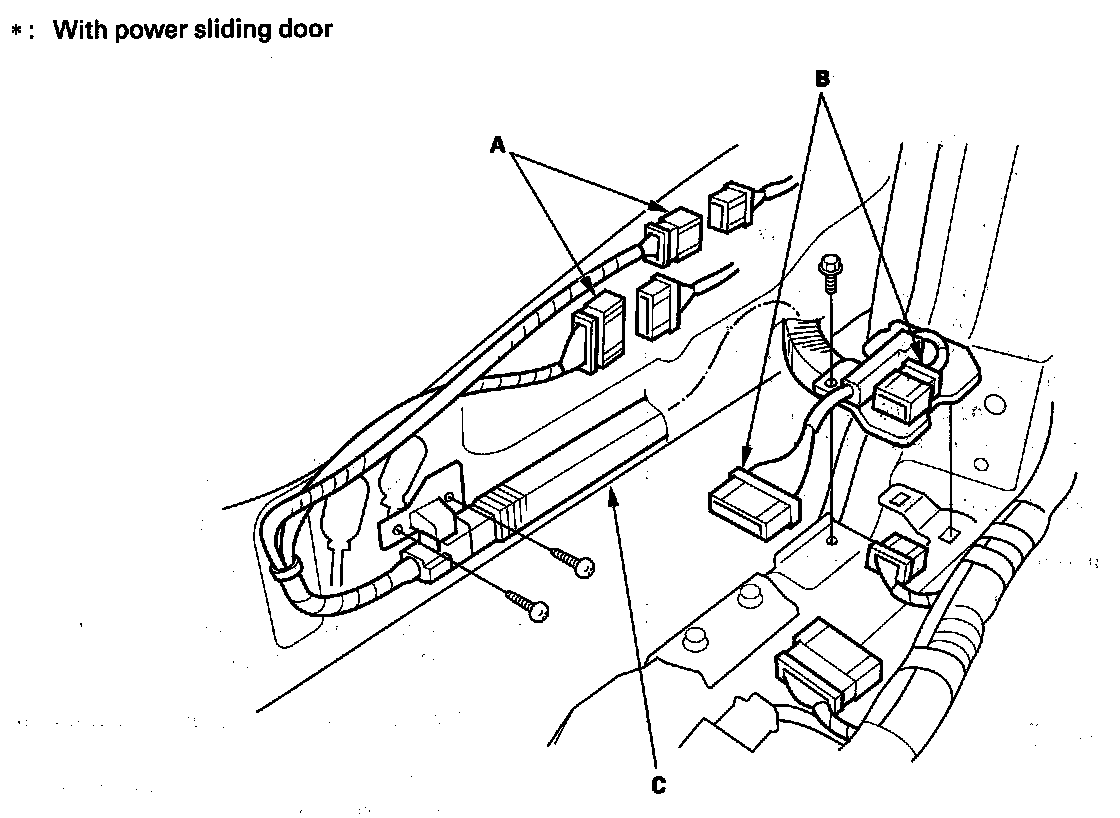

2. Disconnect the 16P* and 8P connectors (A) from the sliding door wire harness.






3. Disconnect the 16P* and 8P connectors (B) from the floor wire harness.
4. Remove the two screws, clip and bolt, then remove the CESS articulated harness (C).
5. Install in the reverse order of removal.
