Seat Belt Switch, Driver's Connector End View

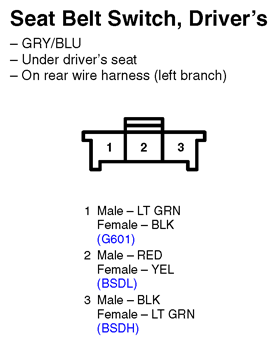

Fig 1: Seat Belt Switch, Driver's Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
