Power Distribution Relay: Locations

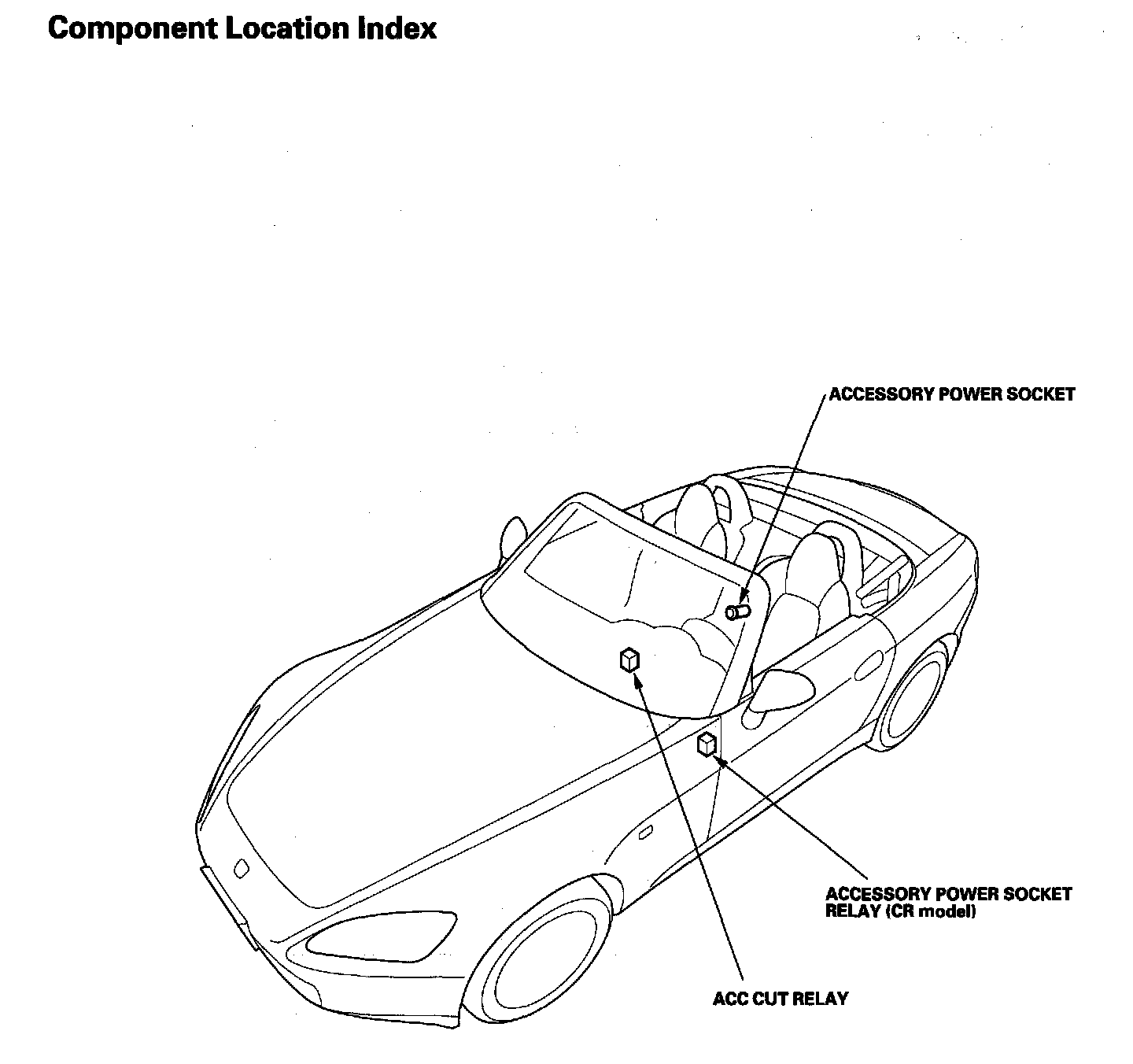

Accessory Power Sockets Component Location Index:



Relay And Control Unit Locations Dashboard And Door:

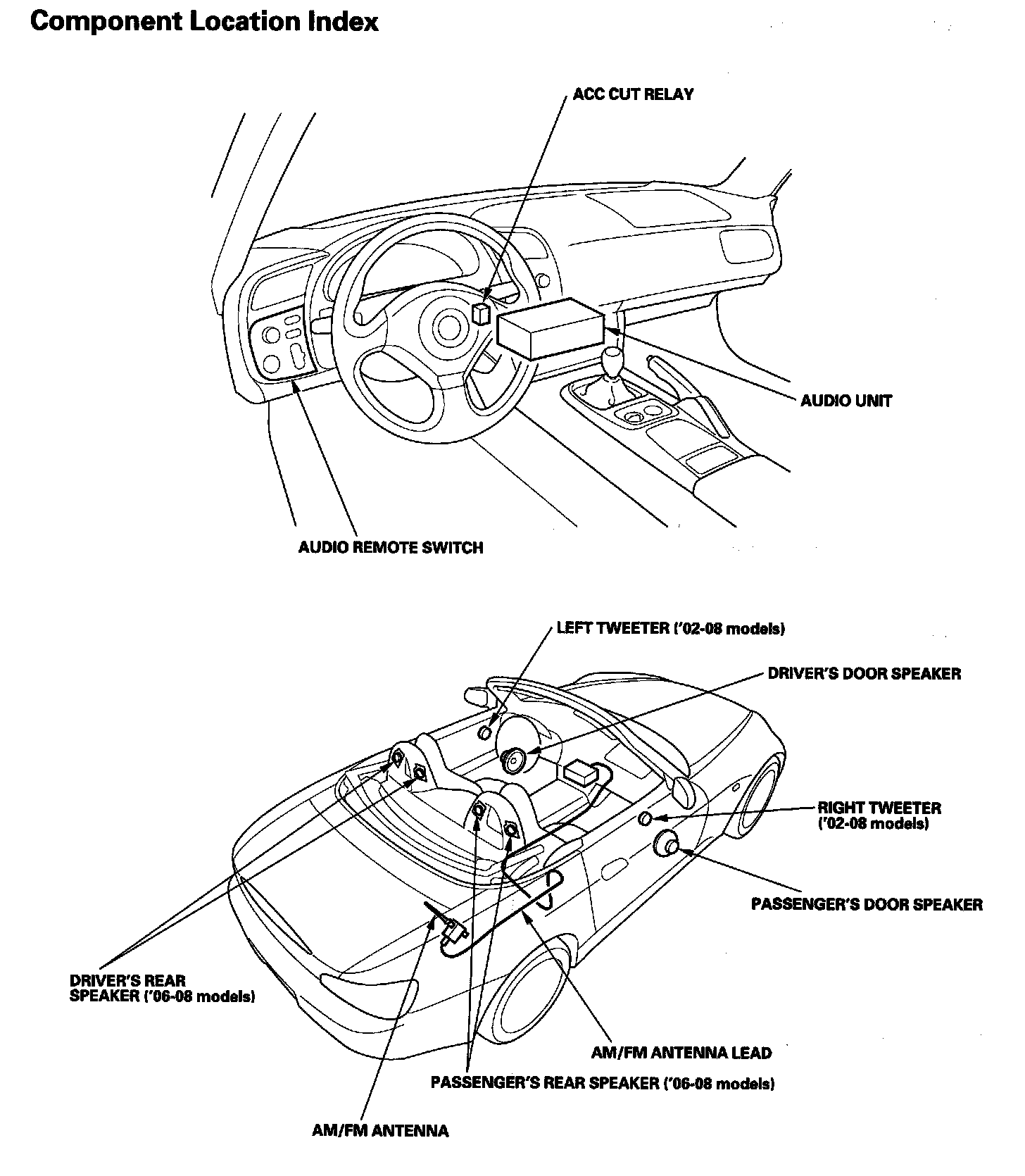

Audio System Component Location Index:
