Navigation System Voice Control Switch Test (With Navigation)




Navigation System Voice Control Switch Test

1. Remove the voice control switch. Overhaul

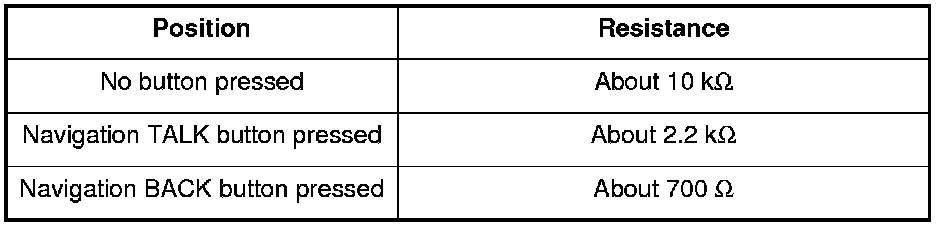

2. Measure the resistance between the No. 2 and No. 4 terminals in each switch position according to the table.





3. If the resistance is not as specified, replace the voice control switch. Navigation Voice Control Switch Replacement (With Navigation)
