CMP Sensor A Replacement

CMP Sensor A Replacement

1. Remove the air cleaner. Service and Repair

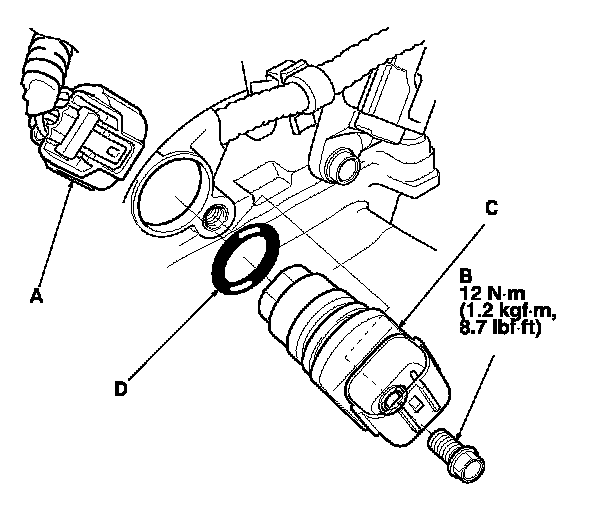

2. Disconnect the CMP sensor A connector (A).

3. Remove the bolt (B).

4. Remove CMP sensor A (C).

5. Install the parts in the reverse order of removal with a new O-ring (D).
