Without Navigation (EX and SC Models)

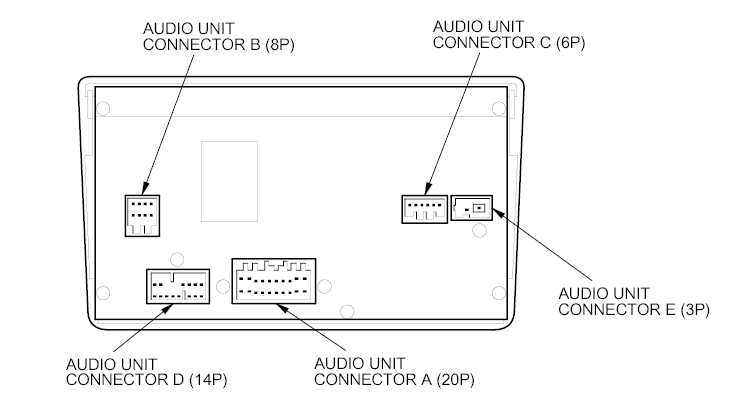

Fig 1: Identifying Audio Unit Connectors A, B, C, D & E

Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUDIO UNIT CONNECTOR A (20P)

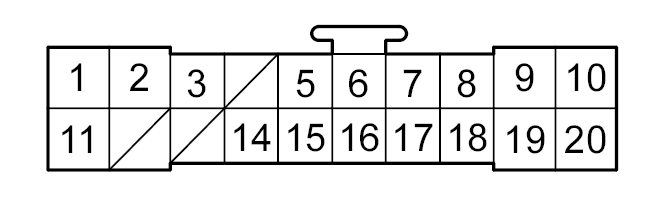

Fig 2: Identifying Audio Unit Connector A (20P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUDIO UNIT CONNECTOR A (20P) TABLE

Cavity	Wire Color	Terminal Name	Connect to
A1	YEL/GRN	SWD+B	Stereo amplifier, AM/FM antenna*2
A2	YEL/RED	ACC	No. 8 (7.5 A) fuse in the under-dash fuse/relay box
A3	GRN/RED	REMOTE	Audio remote switch
A5	BLU	RR SP+	Stereo amplifier
A6	RED	RL SP+	Stereo amplifier
A7	YEL	FR SP+	Stereo amplifier
A8	WHT	FL SP+	Stereo amplifier
A9	RED/BLK	ILLUMI+	No. 2 (15 A) fuse in the under-hood fuse/relay box
A10	WHT/RED	+B	No. 9 (10 A) fuse in the under-hood fuse/relay box
A11	LT GRN/BLK*1	SH GND	Shield for terminals No. 5, No. 6, No. 7, No. 8, No. 15, No. 16, No. 17, and No. 18
A14	BRN	REMOTE GND	Audio remote switch ground
A15	BLK	RR SP-	Stereo amplifier
A16	GRN	RL SP-	Stereo amplifier
A17	BRN	FR SP-	Stereo amplifier
A18	ORN	FL SP-	Stereo amplifier
A19	RED	ILLUMI CONTROL	Dash lights brightness controller (in the gauge control module)
A20	BLK	MAIN GND	Body ground to G503
1: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic. 2: Without XM

AUDIO UNIT CONNECTOR B (8P)

Fig 3: Identifying Audio Unit Connector B (8P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUDIO UNIT CONNECTOR B (8P) TABLE

Cavity	Wire Color	Terminal Name	Connect to
B4	RED/BLU	SUBW+	Stereo amplifier
B7	PNK/BLK*	SH GND	Shield for terminals No. 4 and No. 8
B8	RED/WHT	SUBW-	Stereo amplifier
*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

AUDIO UNIT CONNECTOR C (6P)

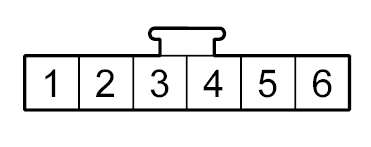

Fig 4: Identifying Audio Unit Connector C (6P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUDIO UNIT CONNECTOR C (6P) TABLE

Cavity	Wire Color	Terminal Name	Connect to
C1	YEL	AUX DET	Auxiliary jack assembly
C2	BLU	AUX GND	Auxiliary jack assembly
C3	BRN	R ch	Auxiliary jack assembly
C4	GRN	S GND	Auxiliary jack assembly
C5	WHT	L ch	Auxiliary jack assembly
C6	LT GRN/RED*	SH GND	Shield for terminals No. 1, No. 3, No. 13, No. 14 and No. 15
*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listedon the schematic.

AUDIO UNIT CONNECTOR D (14P)

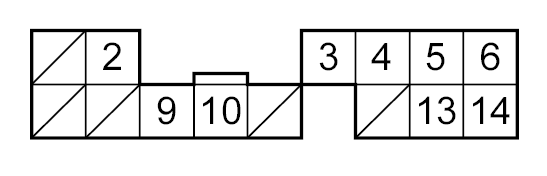

Fig 5: Identifying Audio Unit Connector D (14P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUDIO UNIT CONNECTOR D (14P) TABLE

Cavity	Wire Color	Terminal Name	Connect to
D2	ORN	SYS ACC	XM receiver
D3	BRN*	GA-NET BUS SH	Shield for terminals No. 9 and No. 10
D4	GRY*	AUDIO SH	Shield for terminals No. 5, No. 13 and No. 14
D5	WHT	AUDIO R+	XM receiver
D6	RED	AUDIO L+	XM receiver
D9	BLU	GA-NET BUS+	XM receiver
D10	PNK	GA-NET BUS-	XM receiver
D13	BLU	AUDIO R-	XM receiver
D14	GRN	AUDIO L-	XM receiver
*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

AUDIO UNIT CONNECTOR E (3P)

Fig 6: Identifying Audio Unit Connector E (14P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUDIO UNIT CONNECTOR E (3P) TABLE
