Without Navigation (LX Model)

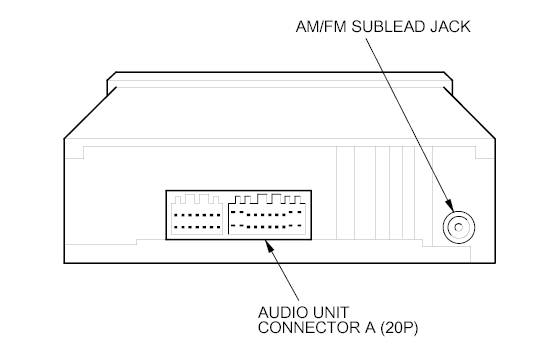

Fig 1: Identifying AM/FM Sublead Jack & Audio Unit Connector A (20P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUDIO UNIT CONNECTOR A (20P)

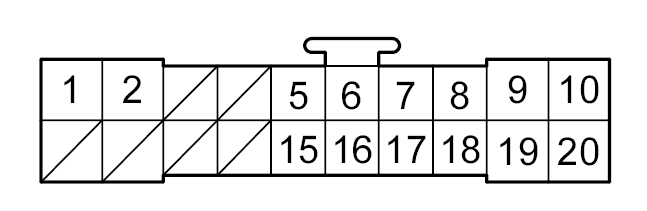

Fig 2: Identifying Audio Unit Connector A (20P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUDIO UNIT CONNECTOR A (20P) TABLE

Cavity	Wire Color	Terminal Name	Connect to
A1	YEL/GRN	SWD+B	AM/FM antenna
A2	YEL/RED	ACC	No. 8 (7.5 A) fuse in the under-dash fuse/relay box
A5	PNK	RR +	Right rear door speaker
A6	BLU/WHT	RL +	Left rear door speaker
A7	GRN/YEL	FR +	Front passenger's door speaker
A8	GRN/BLK	FL +	Driver's door speaker
A9	RED/BLK	ILLUMI+	No. 2 (15 A) fuse in the under-hood fuse/relay box
A10	WHT/RED	+B	No. 9 (10 A) fuse in the under-hood fuse/relay box
A15	BLU/YEL	RR -	Right rear door speaker
A16	BLU/BLK	RL -	Left rear door speaker
A17	BLU/YEL	FR -	Front passenger's door speaker
A18	GRN	FL -	Driver's door speaker
A19	RED	ILLUMI CONTROL	Dash lights brightness controller (in the gauge control module)
A20	BLK	MAIN GND	Body ground to G503

AUDIO UNIT CONNECTOR E (3P)

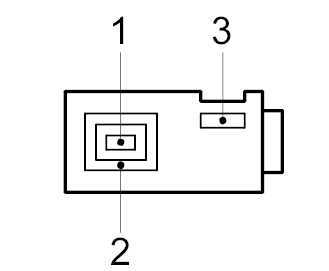

Fig 3: Identifying Audio Unit Connector E (14P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUDIO UNIT CONNECTOR E (3P) TABLE
