Connector-to-Fuse/Relay Box Index

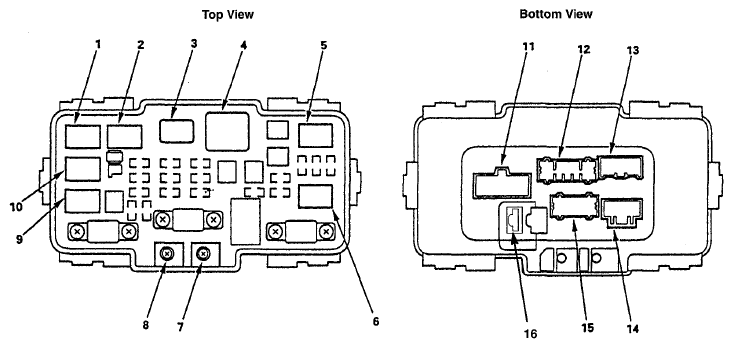

Fig 1: Under-Hood Fuse/Relay Box (6-4)
G07758242
Ref Socket Cavities Connects to
1 Radiator Fan Relay 4
2 A/C Compressor Clutch Relay 4
3 Rear Window Defogger Relay 4
4 Blower Motor Relay 4
5 Not used 4
6 Headlight Relay 4
7 T102 Starter Sub-harness (See STARTER SUB-HARNESS )
8 T101 Starter Sub-harness (See STARTER SUB-HARNESS )
9 A/C Condenser Fan Relay 4
10 Horn Relay 4
11 E 7 Engine Compartment Wire Harness (Left Branch) (See ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) )
12 D 14 Engine Compartment Wire Harness (Left Branch) (See ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) )
13 B 5 Engine Compartment Wire Harness (Left Branch) (See ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) )
14 A 2 Engine Compartment Wire Harness (Left Branch) (See ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) )
15 C 12 Engine Compartment Wire Harness (Left Branch) (See ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) )
16 ELD Unit 3 Engine Compartment Wire Harness (Left Branch) (See ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) )
