A/T Reverse Relay (A/T) and Throttle Actuator Control Module Relay (View 128)
GRY
Behind glove box
On ECM/PCM wire harness

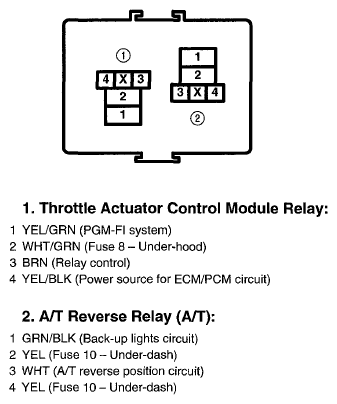

Fig 1: A/T Reverse Relay And Throttle Actuator Control Module Relay Connector Terminal (View 128)
