Security Control Unit Connector (Option) (View 233)
GRN
Under left side of dash
On dashboard wire harness A (left branch)

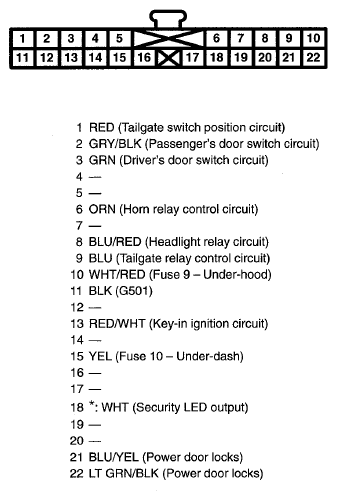

Fig 1: Security Control Unit Connector (Option) Connector Terminal (View 233)
