Throttle Actuator Control Module (View 216)
GRY
Under left side of dash
On dashboard wire harness A (left branch)

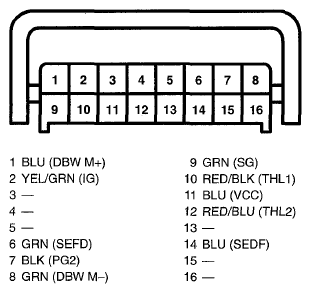

Fig 1: Throttle Actuator Control Module Connector Terminal (View 216)
