Trailer Lighting Control Unit Connector (Option) (View 196)
GRY
Under left side of dash
Connects dashboard wire harness A (left branch) to trailer unit harness (Honda accessory)

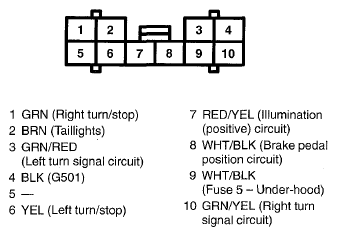

Fig 1: Trailer Lighting Control Unit Connector (Option) Connector Terminal (View 196)
