USB Adapter Unit (Navigation) (View 255)

Behind middle of dash
Connector A
- WHT
- On dashboard wire harness A (left branch)

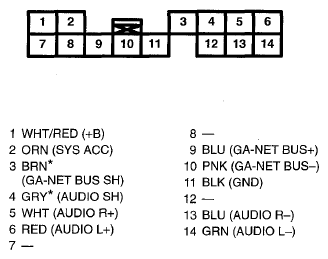

  Fig 1: USB Adapter Unit (Navigation) Connector Terminal - Connector A (View 255)
* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Connector B
- GRY
- On USB sub-harness

  Fig 2: USB Adapter Unit (Navigation) Connector Terminal - Connector B (View 255)
