VSA Modulator-Control Unit (View 240)
BLK
Right side of engine compartment
On engine compartment wire harness (right branch)

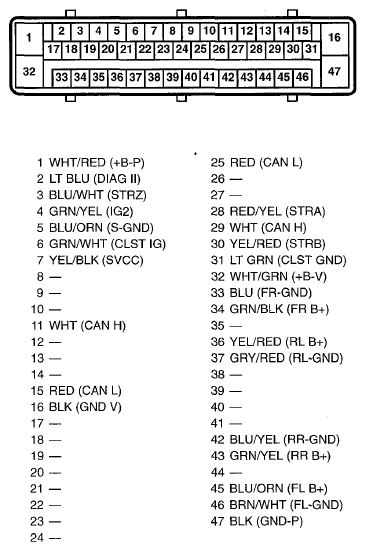

Fig 1: VSA Modulator-Control Unit Connector Terminal (View 240)
