Fuse-to-Components Index

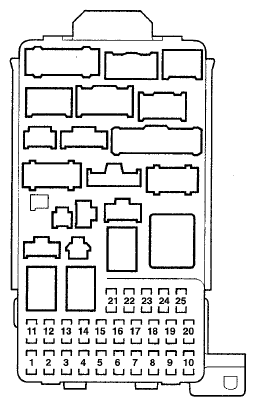

Fig 1: Under-Dash Fuse/Relay Box (6)
G07758238
Fuse Number Fuse Name Amps See Component or Circuit Protected
1 - - UNDER-HOOD FUSE/RELAY BOX - FUSE 20, IGNITION SWITCH AND UNDER-DASH FUSE/RELAY BOX - FUSES 11 AND 21 Not used
2 RR ACC SOCKET 10A UNDER-HOOD FUSE/RELAY BOX - FUSES 11, 12, 13, 14 AND 16 AND UNDER-DASH FUSE/RELAY BOX - FUSES 2, 5, 15 AND 16 Rear Accessory Power Socket Relay
3 DAY LIGHT 10A UNDER-HOOD FUSE/RELAY BOX - FUSES 11, 12, 13, 14 AND 16 AND UNDER-DASH FUSE/RELAY BOX - FUSES 2, 5, 15 AND 16 , UNDER-DASH FUSE/RELAY BOX - FUSES 3 AND 4 DRL Control Unit, Multiplex Control Unit, TPMS Control Unit
4 ACG 10A UNDER-DASH FUSE/RELAY BOX - FUSES 3 AND 4 Alternator, Brake Pedal Position Switch, CMP Sensor A, ELD Unit, EVAP Canister Purge Valve, MAF/IAT Sensor, Secondary HO2S, VSA Modulator-Control Unit
5 - - UNDER-HOOD FUSE/RELAY BOX - FUSES 11, 12, 13, 14 AND 16 AND UNDER-DASH FUSE/RELAY BOX - FUSES 2, 5, 15 AND 16 Not used
6 PA/V RELAY 7.5A UNDER-DASH FUSE/RELAY BOX - FUSES 6, 22, 24 AND 25 Power Window Master Switch, Power Window Relay
7 AMP (20A) UNDER-DASH FUSE/RELAY BOX - FUSES 7, 8, 12, 13 AND 23 Stereo Amplifier (EX, SC)
8 ACC RADIO 7.5A UNDER-DASH FUSE/RELAY BOX - FUSES 7, 8, 12, 13 AND 23 Audio Unit (except Navigation), Audio-Navigation Unit (Navigation), Multiplex Control Unit
9 RR WIPER 10A UNDER-DASH FUSE/RELAY BOX - FUSES 9 AND 10 ODS Unit, Rear Window Wiper Intermittent Control Unit, Rear Window Wiper Motor, Wiper/Washer Switch
10 METER 7.5A UNDER-DASH FUSE/RELAY BOX - FUSES 9 AND 10 A/T Reverse Relay (A/T), Back-up Light Switch (M/T), Gauge Control Module, Keyless Receiver Unit, Multiplex Control Unit, Security Control Unit Connector (Option), Shift Lock Solenoid/D3 Switch (A/T), TPMS Control Unit
11 - - UNDER-HOOD FUSE/RELAY BOX - FUSE 20, IGNITION SWITCH AND UNDER-DASH FUSE/RELAY BOX - FUSES 11 AND 21 Not used
12 DAY LIGHT 7.5A UNDER-DASH FUSE/RELAY BOX - FUSES 7, 8, 12, 13 AND 23 DRL Control Unit, Multiplex Control Unit
13 SRS 10A UNDER-DASH FUSE/RELAY BOX - FUSES 7, 8, 12, 13 AND 23 SRS Unit
14 R/C MIRROR 10A UNDER-DASH FUSE/RELAY BOX - FUSES 7, 8, 12, 13 AND 23 A/C Compressor Clutch Relay, A/C Condenser Fan Relay, Blower Motor Relay, Heater Control Panel, Power Mirror Switch, Radiator Fan Relay, Rear Window Defogger Relay, Recirculation Control Motor

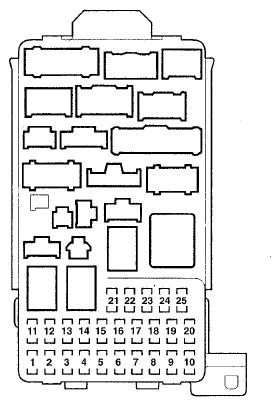

Fig 2: Under-Dash Fuse/Relay Box (6-1)
G07758239
Fuse Number Fuse Name Amps See Component or Circuit Protected
15 LAF HEATER 20A UNDER-HOOD FUSE/RELAY BOX - FUSES 11, 12, 13, 14 AND 16 AND UNDER-DASH FUSE/RELAY BOX - FUSES 2, 5, 15 AND 16 A/F Sensor Relay
16 - 15A UNDER-HOOD FUSE/RELAY BOX - FUSES 11, 12, 13, 14 AND 16 AND UNDER-DASH FUSE/RELAY BOX - FUSES 2, 5, 15 AND 16 Ignition Coil Relay
17 FUEL PUMP 15A UNDER-DASH FUSE/RELAY BOX - FUSES 17, 18, 19 AND 20 ECM/PCM, Front Passenger's Airbag Cut-off Indicator, Immobilizer Control Unit-receiver, Imoes Unit, PGM-FI Main Relay 2, SRS Unit
18 FR ACC SOCKET 15A UNDER-DASH FUSE/RELAY BOX - FUSES 17, 18, 19 AND 20 Console Accessory Power Socket (SC), Front Accessory Power Socket, Rear Accessory Power Socket Relay
19 TURN LIGHT 7.5A UNDER-DASH FUSE/RELAY BOX - FUSES 17, 18, 19 AND 20 Hazard Warning Switch
20 FR WIPER 20A UNDER-DASH FUSE/RELAY BOX - FUSES 17, 18, 19 AND 20 Multiplex Control Unit, Windshield Wiper Motor, Wiper/Washer Switch
21 - - UNDER-HOOD FUSE/RELAY BOX - FUSE 20, IGNITION SWITCH AND UNDER-DASH FUSE/RELAY BOX - FUSES 11 AND 21 Not used
22 A/SP/W 20A UNDER-DASH FUSE/RELAY BOX - FUSES 6, 22, 24 AND 25 Front Passenger's Power Window Switch, Power Window Master Switch
23 DR P/W 20A UNDER-DASH FUSE/RELAY BOX - FUSES 7, 8, 12, 13 AND 23 Power Window Master Switch
24 - - UNDER-DASH FUSE/RELAY BOX - FUSES 6, 22, 24 AND 25 Not used
25 - - UNDER-DASH FUSE/RELAY BOX - FUSES 6, 22, 24 AND 25 Not used
