Audio Display-USB Adapter Control Unit Connector A (32P)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

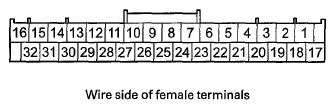

Fig 1: Identifying Audio Display-USB Adapter Control Unit Connector A (32P)
G06970655Courtesy of AMERICAN HONDA MOTOR CO., INC.

Audio Display-USB Adapter Control Unit Connector A (32P)

CONNECTOR TERMINALS REFERENCE CHART

Cavity Wire Color Terminal Name Description
A1 ORN GA AUDIO R+ Outputs sound signal
A2 YEL GA AUDIO R- Outputs sound signal
A3 GRY(1) GA AUDIO SH Shield for terminals No. 1, No. 2, No. 4, and No. 5
A4 BLU GA AUDIO L- Outputs sound signal
A5 PUR GA AUDIO L+ Outputs sound signal
A6 Not used Not used --
A7 GRY(1) CAMERA SH Shield for terminals No. 8, No. 21, No. 22, No. 23, and No. 24
A8 YEL CAMERA ADPT Control signal for rearview camera
A9 LT GRN DUET CONT DUET control signal
A10 PUR DUET 2 Communication signal to audio unit
A11 RED DUET 1 Communication signal to audio unit
A12 YEL GA BUS- GA-Net bus communication signal
A13 BRN GA BUS+ GA-Net bus communication signal
A14 GRY(1) GA BUS SH Shield for terminals No. 12 and No. 13
A15 BLK GND Ground for audio display-USB adapter control unit (G501)
A16 PUR ACC Power source for accessories
A17 Not used Not used --
A18 Not used Not used --
A19 Not used Not used --
A20(2) BLK PARK AID DET Ground for audio display-USB adapter control unit (G501)
A21 RED CAMERA V GND Ground for rearview camera
A22 WHT CAMERA V Video signal for rearview camera
A23 GRN GND (RC) Ground for rearview camera
A24 BLK CAMERA VCC Power source for rearview camera
A25 Not used Not used --
A26 Not used Not used --
A27 Not used Not used --
A28 PNK B-CAN H Communication signal
A29 BLU B-CAN L Communication signal
A30 Not used Not used --
A31 Not used Not used --
A32 ORN + B Continuous power source
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the circuit diagram.
(2) With parking and back-up sensor system
