Audio Unit Connector A (24P)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

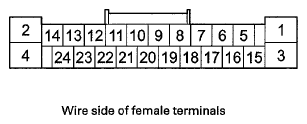

Audio Unit Connector A (24P)
CONNECTOR TERMINALS REFERENCE CHART
| Cavity | Wire Color | Terminal Name | Description | ||||
|---|---|---|---|---|---|---|---|
| A1 | BRN | MAIN GND | Ground for audio-navigation unit (G502) | ||||
| A2(2) | RED | ILL-(LED) | Detects illumination control signal | ||||
| A3 | ORN | + B | Continuous power source | ||||
| A4(2) | GRY | ILL+ | Detects parking light on signal | ||||
| A5 | GRY | RL SP+ | Outputs sound signal for left rear door speaker | ||||
| A6 | ORN | RL SP- | Outputs sound signal for left rear door speaker | ||||
| A7 | Not used | Not used | -- | ||||
| A8 | Not used | Not used | -- | ||||
| A9 | PNK | RR SP+ | Outputs sound signal for Right rear door speaker | ||||
| A10 | PUR | RR SP- | Outputs sound signal for Right rear door speaker | ||||
| A11(1) | ORN | REMOTE GND | Audio remote switch ground | ||||
| A12 | WHT | SCTY- | Security signal from MICU | ||||
| A13 | LT BLU | K-LINE | Detects scan tool signal (serial data) | ||||
| A14 | Not used | Not used | -- | ||||
| A15 | GRN | FL SP+ | Outputs sound signal for left front speaker(s) | ||||
| A16 | RED | FL SP- | Outputs sound signal for left front speaker(s) | ||||
| A17 | Not used | Not used | -- | ||||
| A18 | Not used | Not used | -- | ||||
| A19 | GRY | FR SP+ | Outputs sound signal for right front speaker(s) | ||||
| A20 | LT BLU | FR SP- | Outputs sound signal for right front speaker(s) | ||||
| A21 | Not used | Not used | -- | ||||
| A22(1) | PNK | REMOTE | Detects control signal from audio remote switch | ||||
| A23(2) | GRN | VSP | Detects vehicle speed pulse from PCM | ||||
| A24 | PUR | ACC | Power source for accessories | ||||
|
|||||||
