Audio-Navigation Unit or Audio Unit
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
- Provides rear system power
- Provides control for the rear functions
- Allows the rear display to show information about the rear system status
- Provides a method to stop the rear passengers from having control of the rear system
- Built into the DVD player
- Turn the rear entertainment system ON.

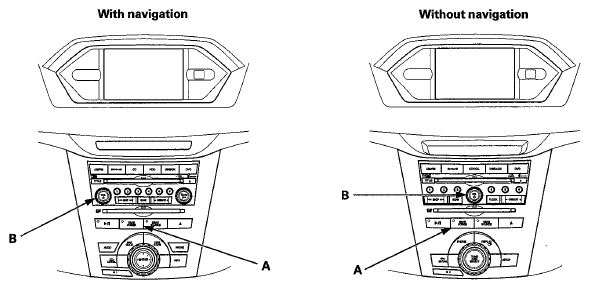

- After the ignition switch is turned ON, push REAR POWER button (A) to turn the rear system on.
- To turn the rear system OFF, push the REAR POWER button, and to turn the whole system off, push the VOL button (B).
- Using the select button.

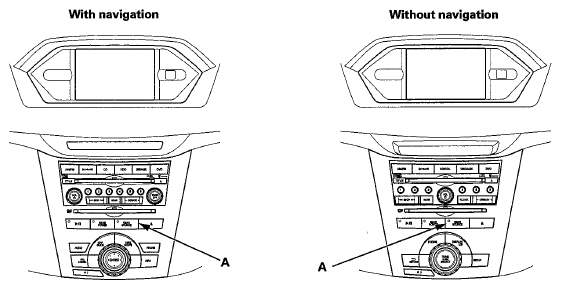

- REAR SOURCE button (A), indicator light off: control of front source from the audio-navigation unit or audio unit.
- REAR SOURCE button, indicator light on: control of rear source from the audio-navigation unit or audio unit.
- The rear source automatically reverts back to front source after 20 seconds if no operation is done.
- Viewing the display(s).

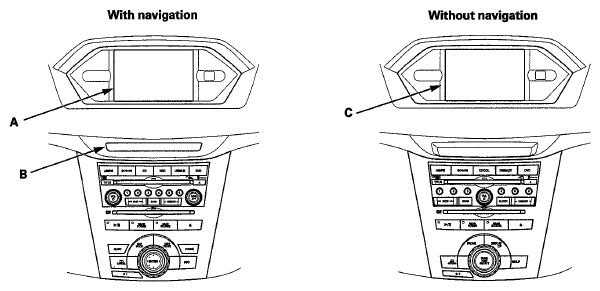

The navigation display (A), audio-navigation switch panel display (B), or audio display (C) indicates the status of the front and rear systems.
- Rear speaker automatic off function.
By turning the rear speaker off you can reduce the interference between the front source and the rear source (Headphone). The speaker will be turned ON/OFF when press and hold the REAR POWER button for 2 seconds. When the rear speaker is in the OFF mode, the audio display shows the rear speaker icon.
