2WD model

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

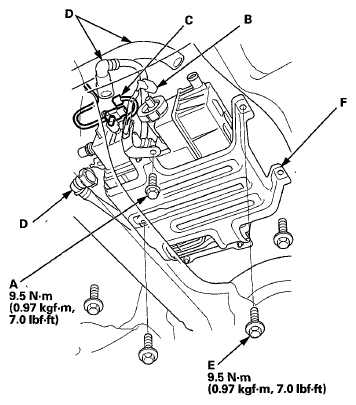

Remove the bolt (A), and disconnect the EVAP canister vent shut valve 2P connector (B), the FTP sensor 3P connector (C), and the hoses (D).

Fig 1: EVAP Canister Vent Shut Valve 2P Connector And Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (E), and move the EVAP canister assembly (F) to the rear.
Remove the FTP sensor (A).

Fig 2: Identifying FTP Sensor And Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal with new O-ring (B) and a new retainer (C).
