Fluids: Specifications

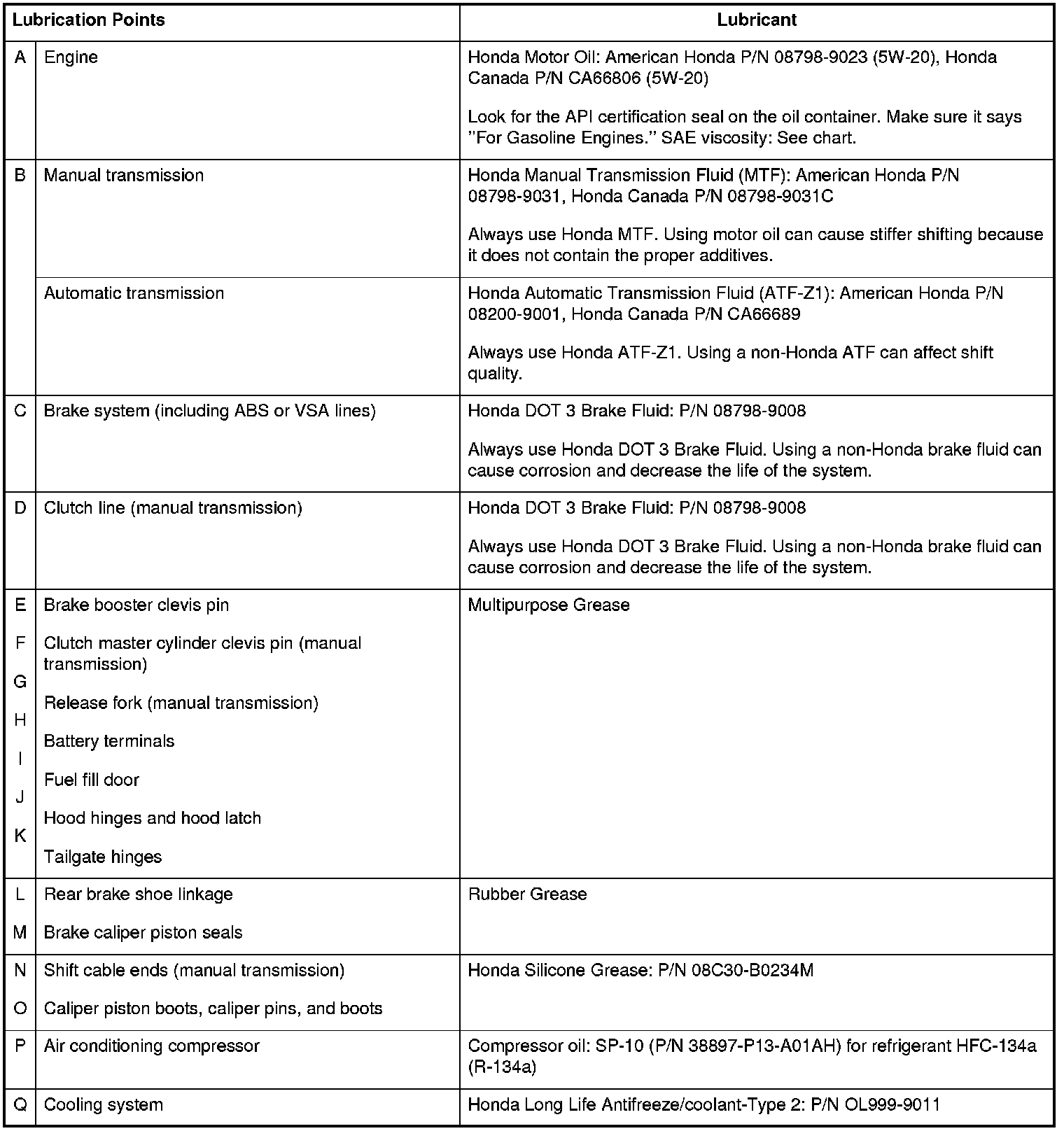

Lubricants and Fluids

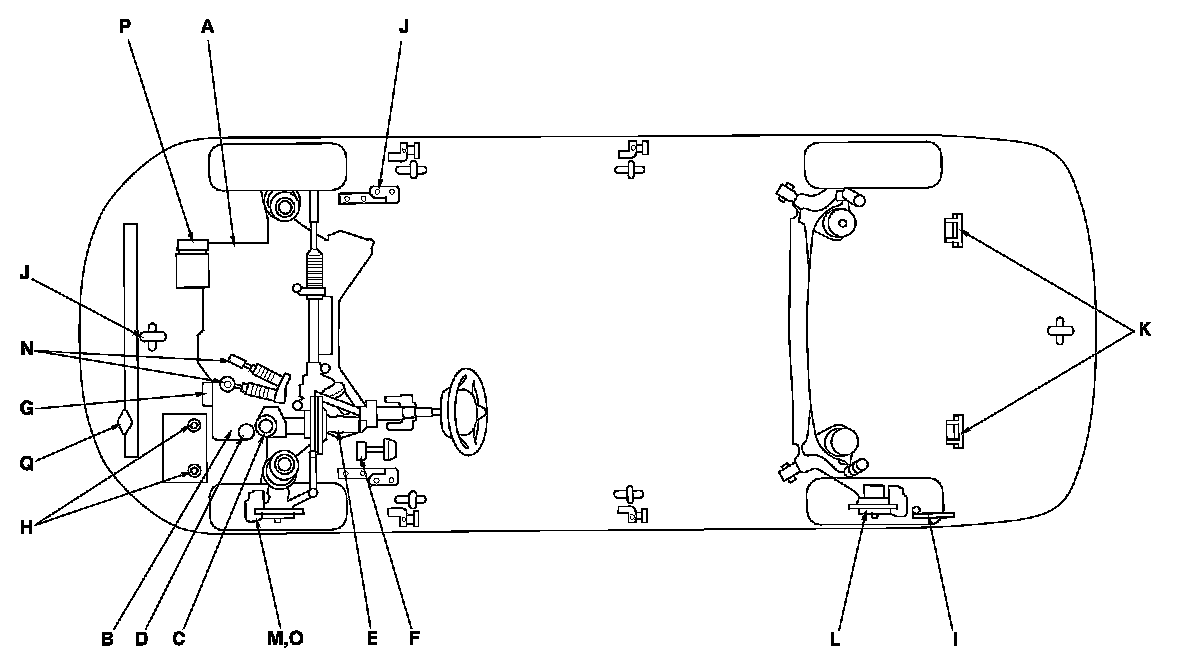

For details of lubrication points and type of lubricants to be applied, refer to the illustrated index and various work procedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.) contained in each section.










NOTE:

- Lubricate the following areas using the recommended lubricants and fluids.

- In corrosive areas, more frequent lubrication is necessary.
