Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Module Removal/Installation

1. Remove the driver's dashboard lower cover. Drivers Dashboard Lower Cover Removal/Installation

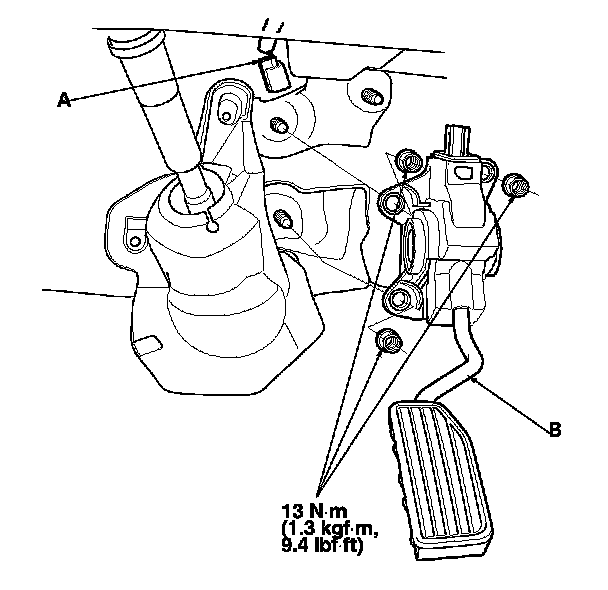

2. Disconnect the APP sensor connector (A).

3. Remove the accelerator pedal module (B).
NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal module.

4. Install the parts in the reverse order of removal.
