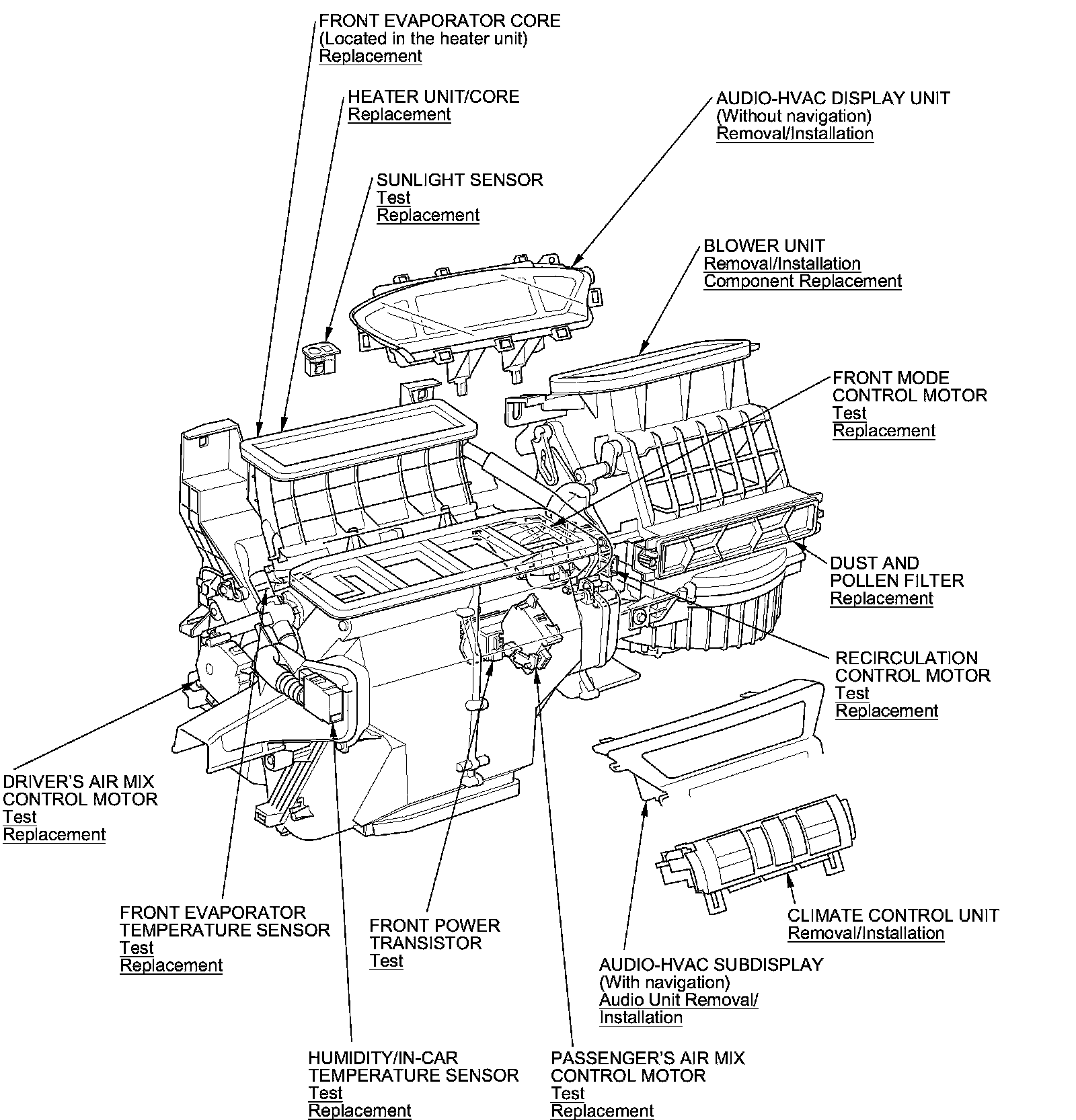

Climate Control System Component Location Index
Climate Control System Component Location Index
'09-10 models
