2000-03 Models

  1. Remove the two screws securing the cruise control set/decel, resume/accel switch, then remove the switch.

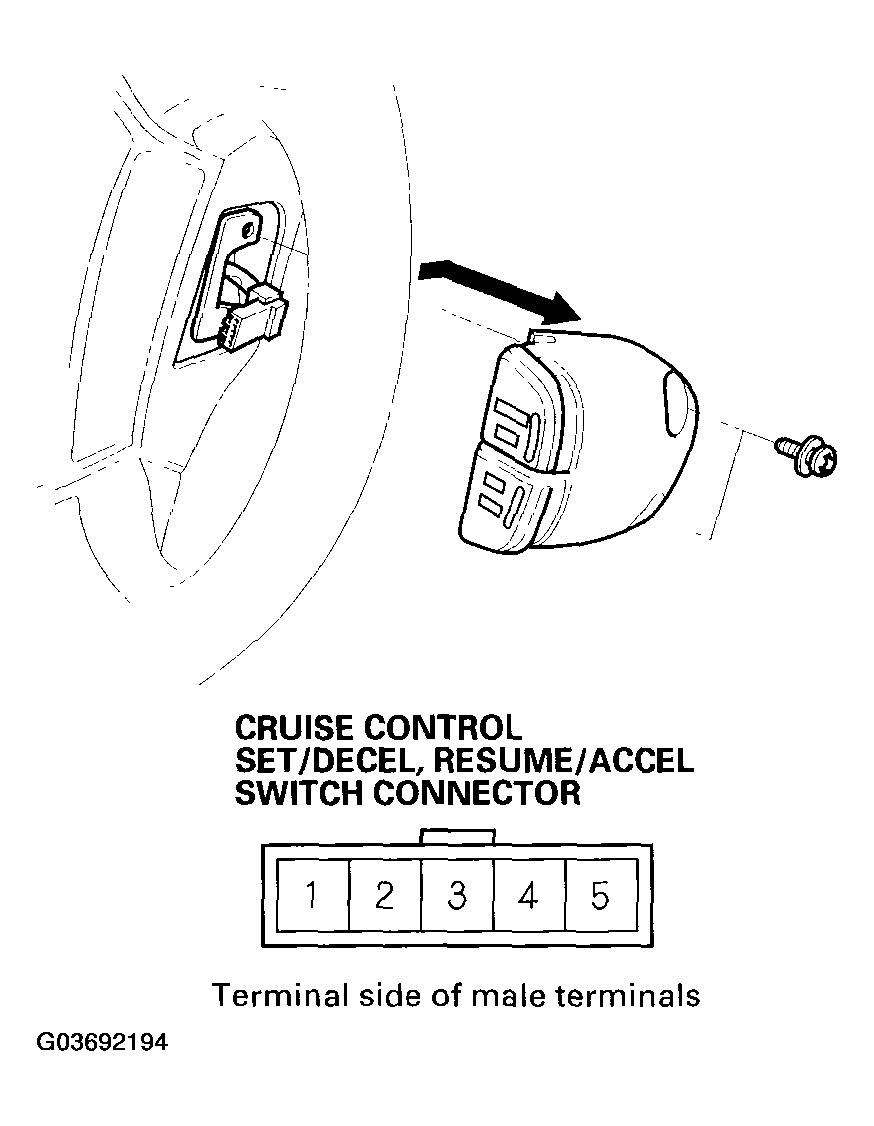

    Fig 1: Removing Cruise Control Set/Decel, Resume/Accel Switch (2000-03 Models)
    G03692194Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the connector from the switch.
  3. Check for continuity between the terminals in switch position according to the table. There should be continuity while pressing the switch down, and no continuity when the switch is released.

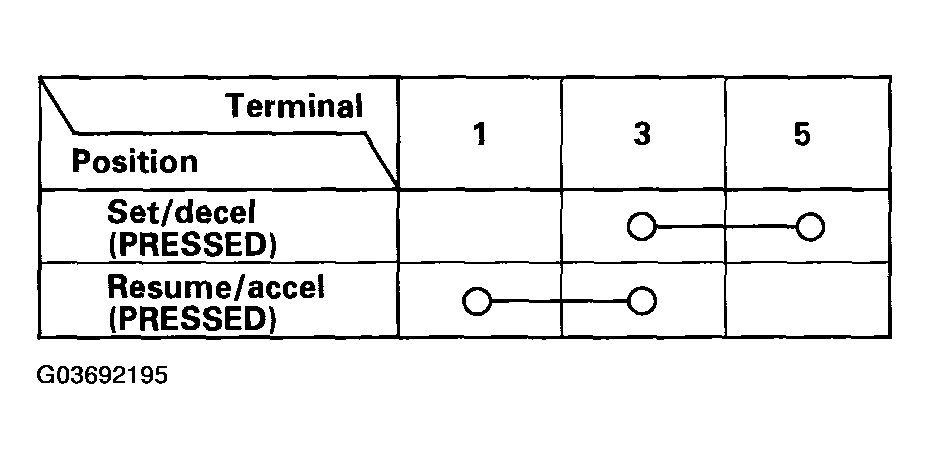

    Fig 2: Cruise Control Set/Decel, Resume/Accel Switch Terminals Continuity Checking Reference Chart
    G03692195Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If either switch is faulty, replace the switch assembly.
  5. If the switch is OK, but switch failure has occurred on the cruise control unit input test, check and repair the wire harness on the switch circuit.
