Throttle Actuator Control Module Connector End View

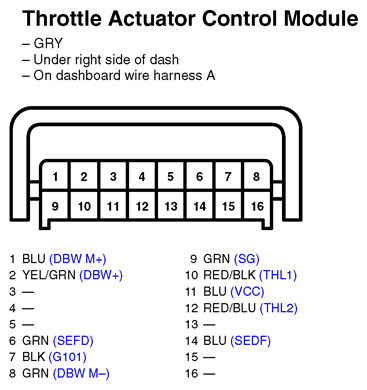

Fig 1: Throttle Actuator Control Module Connector End View
G11250385Courtesy of AMERICAN HONDA MOTOR CO., INC.
