PCV Valve Replacement

  1. Disconnect the PCV hose.
  2. Remove the PCV valve (A).
  3. Install the valve in the reverse order of removal with a new washer (B).

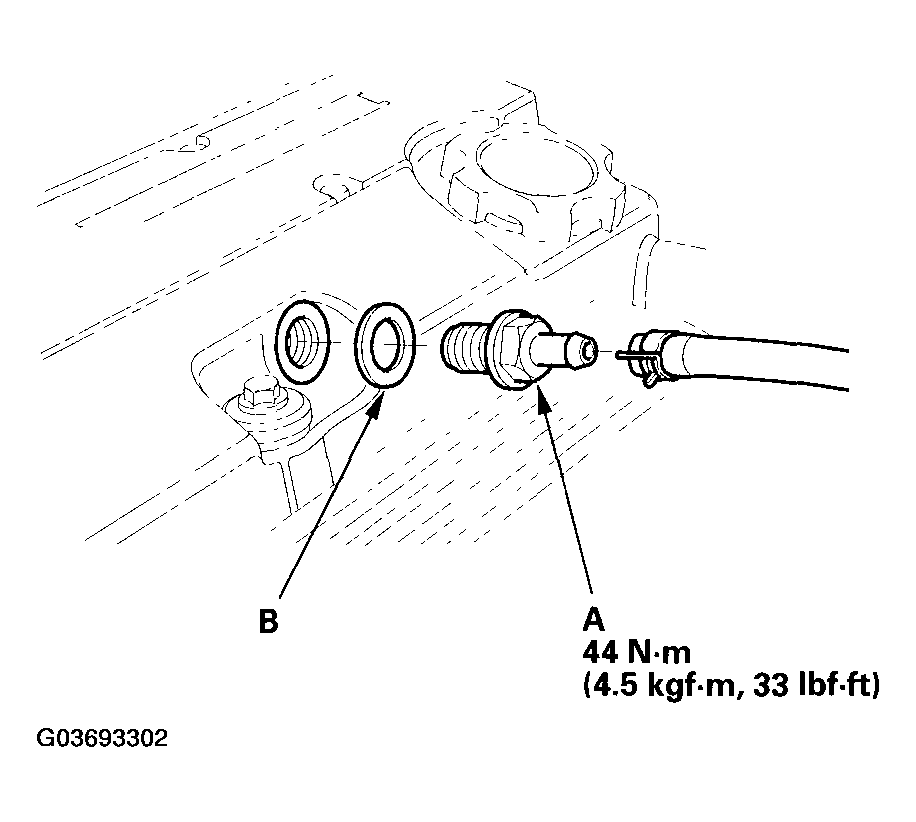

    4. Fig 1: Installing PCV Valve With Torque Specifications
    G03693302Courtesy of AMERICAN HONDA MOTOR CO., INC.
