CKP Sensor Replacement

  1. Remove the CKP sensor (A).

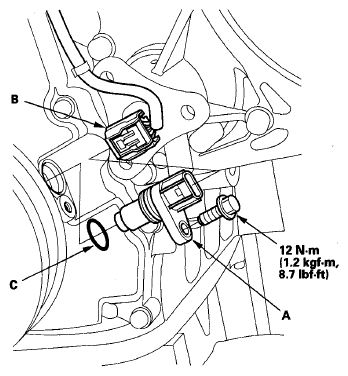

    Fig 1: CKP Sensor With Torque Specifications
    G06231779Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the CKP sensor 3P connector (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
  4. Do the CKP pattern clear/CKP pattern learn procedure (see CRANK (CKP) PATTERN CLEAR/CRANK (CKP) PATTERN LEARN ).
