Trunk / Liftgate: Service and Repair

Trunk Lid Rubber Protector Replacement

NOTE:

- Take care not to scratch the trunk lid.

- Use a clip remover to remove the clips.

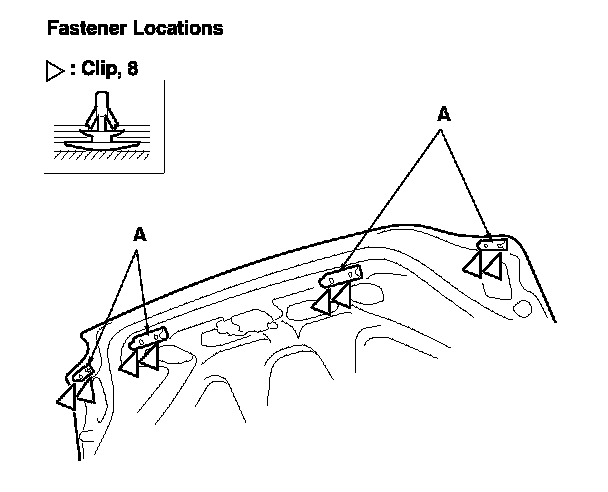

1. Remove the trunk lid rubber protectors (A) as shown.

Except CR model





CR model

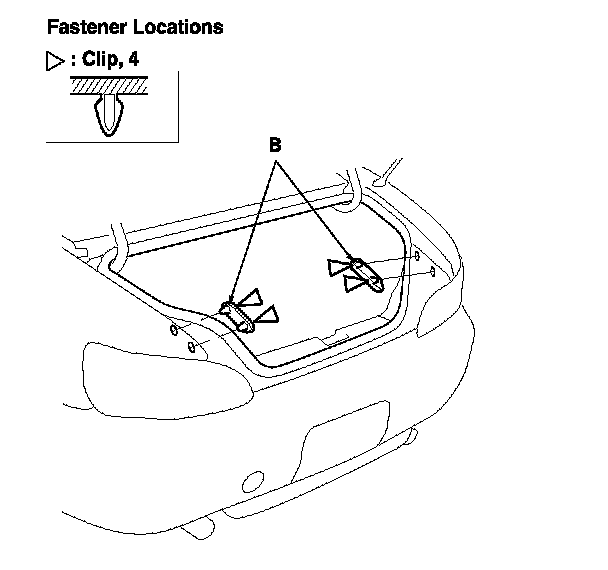

2. CR model: If necessary, remove the trunk side protectors (B).

3. Note these items when reinstalling the protectors:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
