Front Subframe: Service and Repair

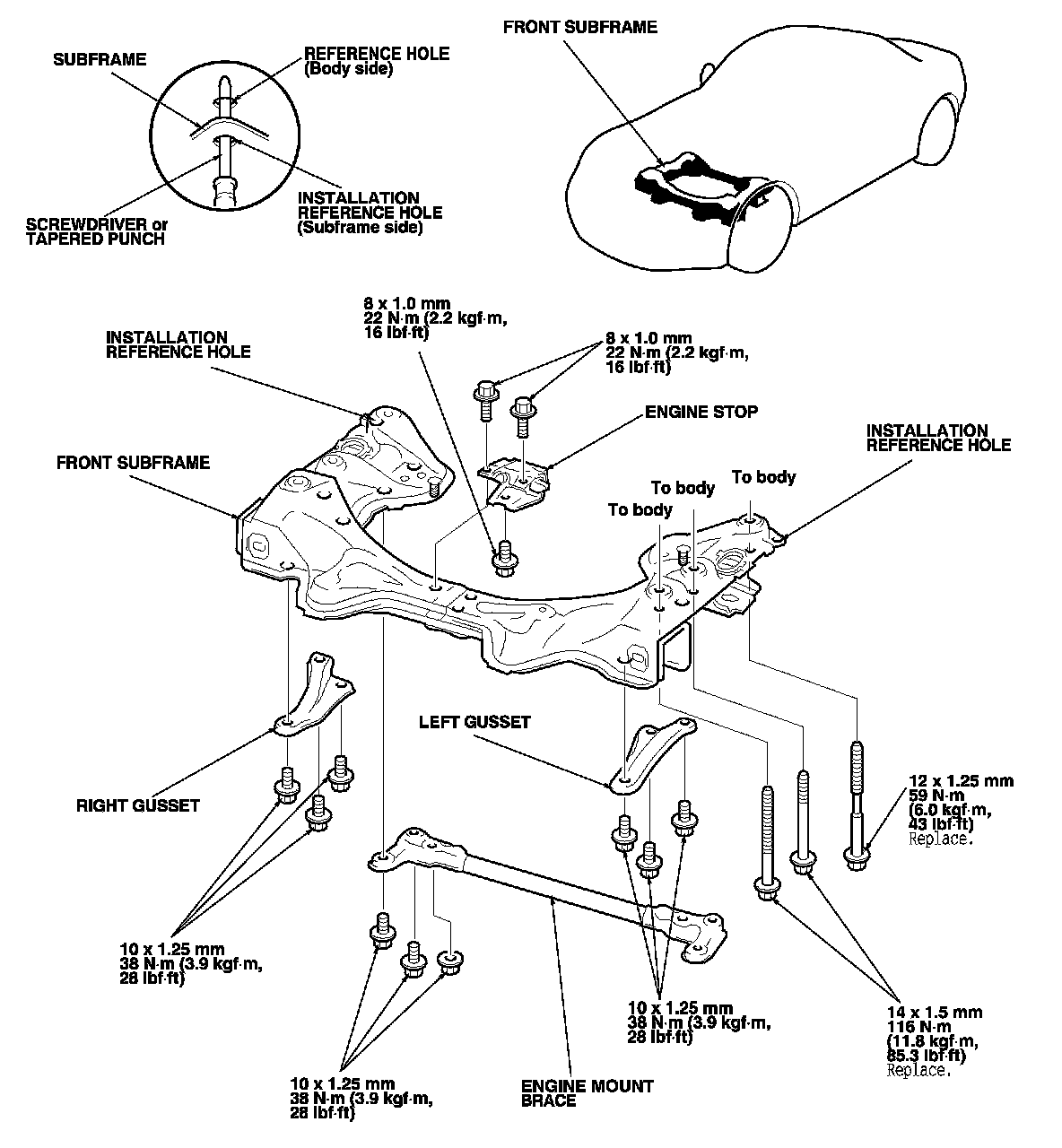

Front Subframe Replacement

After loosening the subframe mounting bolts, be sure to replace them with new ones.

Reference hole alignment
