View 183 - C203 Connector View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

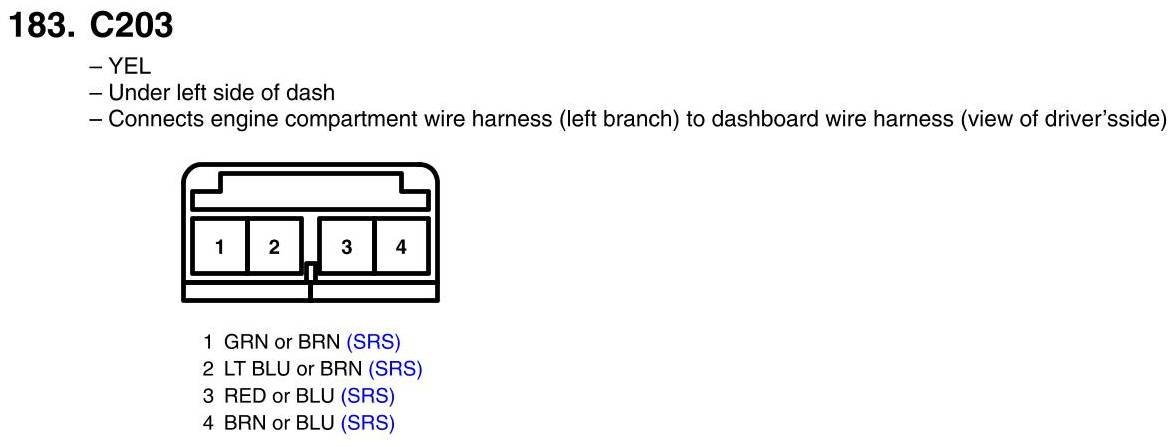

View 183 - C203 Connector View
