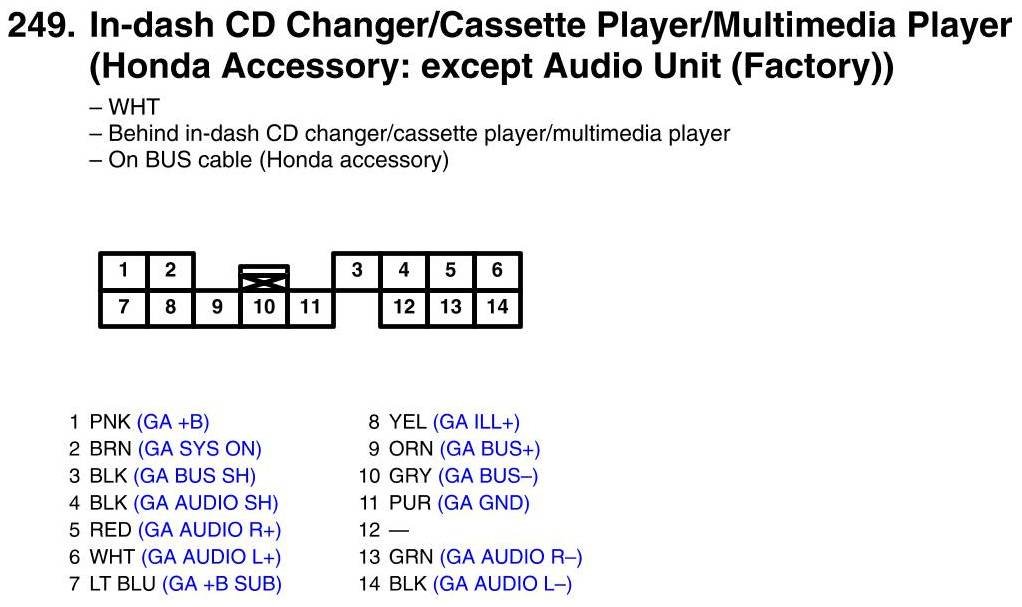

View 249 - In-Dash CD Changer/Cassette Player/Multimedia Player Connector View (Honda Accessory: except Audio Unit (Factory))
