Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

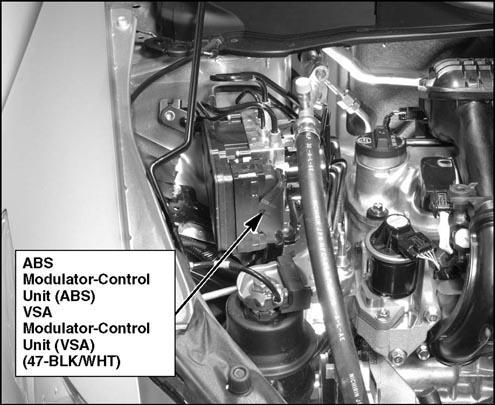

| ABS Modulator-Control Unit | Right front of engine compartment. See Figure. |

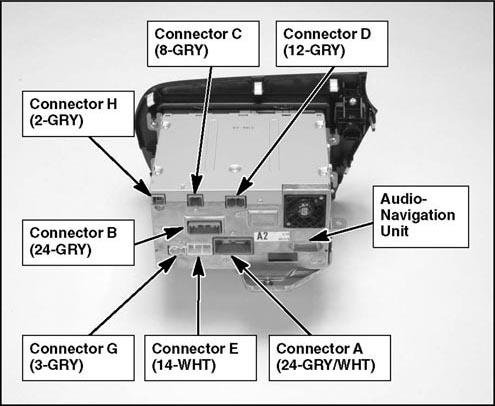

| Audio-Navigation Unit | Behind middle of dash. See Figure. |

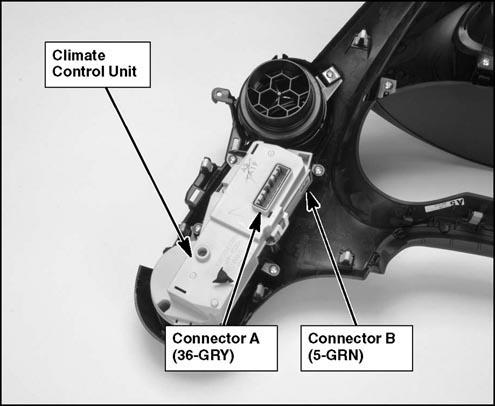

| Climate Control Unit | Behind middle of dash. See Figure. |

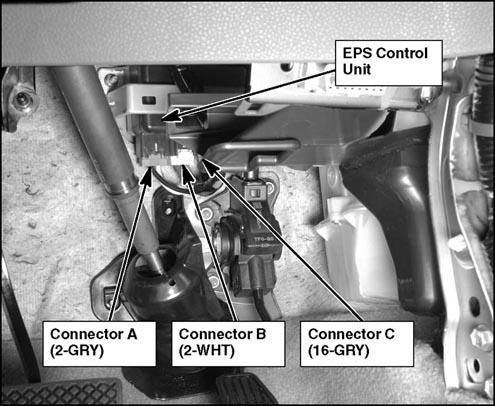

| EPS Control Unit | Left side of dash. See Figure. |

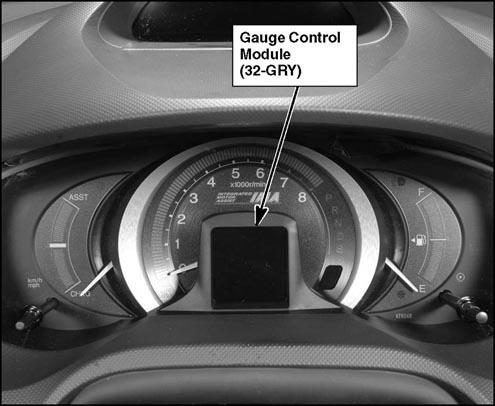

| Gauge Control Unit | Center instrument cluster. See Figure. |

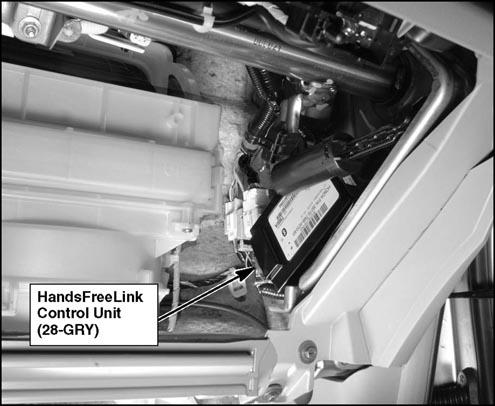

| HandsFreeLink Control Unit | Right side of dash. See Figure. |
| Immobilizer-Keyless Control Unit | In steering column cover. See Figure. |

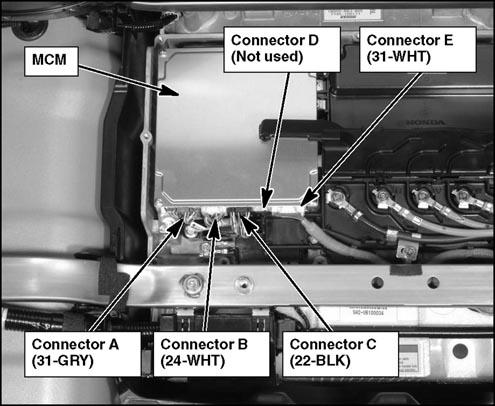

| MCM | Under IPU lid. See Figure. |

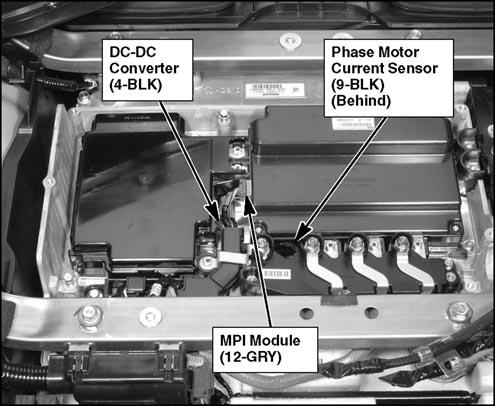

| MPI Module | Under IPU lid. See Figure. |

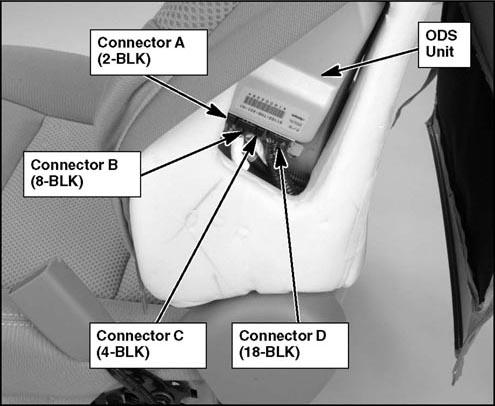

| ODS Unit | Under front passenger's seat. See Figure. |

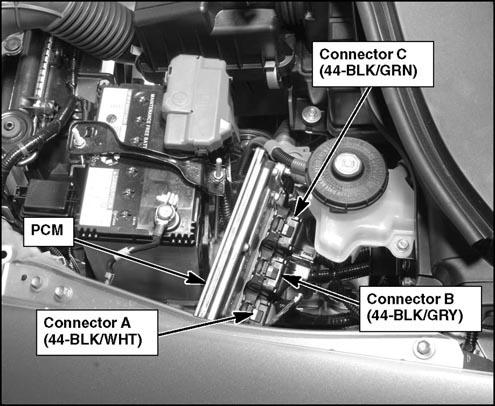

| PCM | Left front of engine compartment. See Figure. |

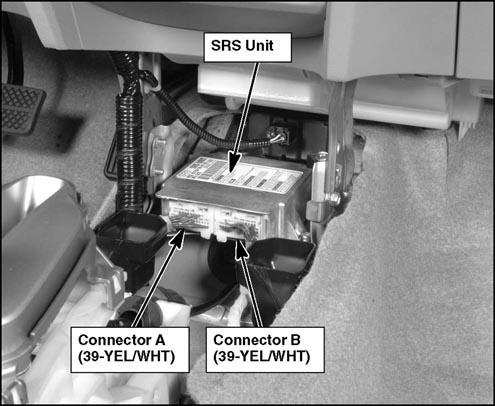

| SRS Unit | Under center of dash. See Figure. |

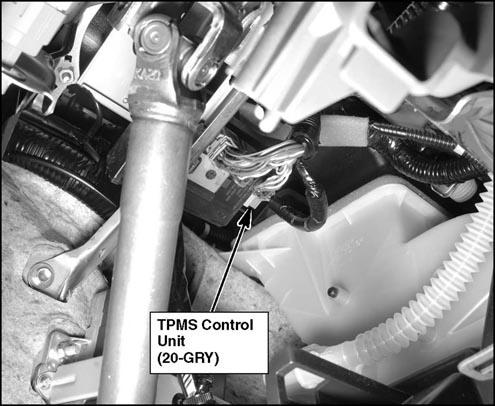

| TPMS Control Unit | Left side of dash. See Figure. |

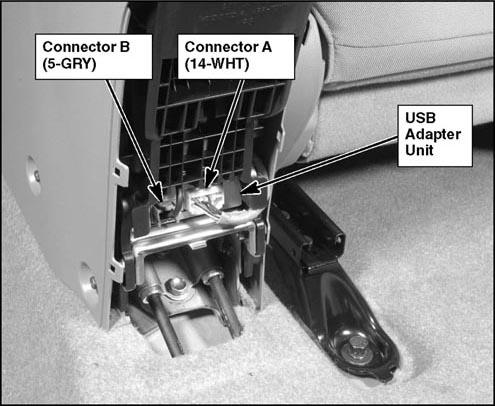

| USB Adapter Unit | Rear of center console. See Figure. |
| VSA Modulator-Control Unit | Right front of engine compartment. See Figure. |
