| 1 |
T-BACK LT |
(7.5A) |

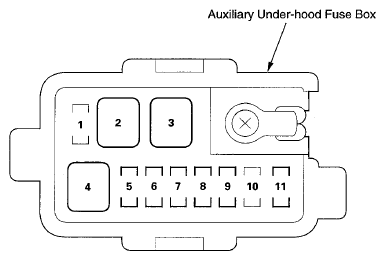

AUXILIARY UNDER-HOOD FUSE BOX - FUSES 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, AND 11 |
Trailer Lighting Control Unit |
| 2 |
VSA FSR |
20A |
AUXILIARY UNDER-HOOD FUSE BOX - FUSES 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, AND 11 |
VSA Modulator-Control Unit |
| 3 |
VSA MTR |
40A |
AUXILIARY UNDER-HOOD FUSE BOX - FUSES 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, AND 11 |
VSA Modulator-Control Unit |
| 4 |
VTM-4 |
20A |
AUXILIARY UNDER-HOOD FUSE BOX - FUSES 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, AND 11 |
VTM-4 Relay |
| 5 |
FR ACC SOCKET |
15A |
AUXILIARY UNDER-HOOD FUSE BOX - FUSES 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, AND 11 |
Front Accessory Power Socket Relay |
| 6 |
T-E/BRK |
(20A) |
AUXILIARY UNDER-HOOD FUSE BOX - FUSES 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, AND 11 |
C410 (Trailer Electric Brake Connector) (If equipped) (Honda Acccessory) |
| 7 |
T-SMALL |
(20A) |
AUXILIARY UNDER-HOOD FUSE BOX - FUSES 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, AND 11 |
Trailer Lighting Relay 2 |
| 8 |
T-STOP/TURN |
(7.5A) |
AUXILIARY UNDER-HOOD FUSE BOX - FUSES 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, AND 11 |
Trailer Lighting Control Unit |
| 9 |
T-CHARGE |
(20A) |
AUXILIARY UNDER-HOOD FUSE BOX - FUSES 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, AND 11 |
Trailer Lighting Relay 1 |
| 10 |
TPMS |
7.5A |
AUXILIARY UNDER-HOOD FUSE BOX - FUSES 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, AND 11 |
TPMS Control Unit (USA, Canada, Mexico) |
| 11 |
S/R |
(20A) |
AUXILIARY UNDER-HOOD FUSE BOX - FUSES 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, AND 11 |
Moon roof Close Relay (USA: RTL; Canada: EX-L),
Moonroof Open Relay (USA: RTL; Canada: EX-L) |
