Climate Control Unit Removal/Installation (Without Navigation)

Climate Control Unit Removal/Installation

Without Navigation System

1. Remove the audio unit Audio Unit Removal/Installation (Without Navigation).

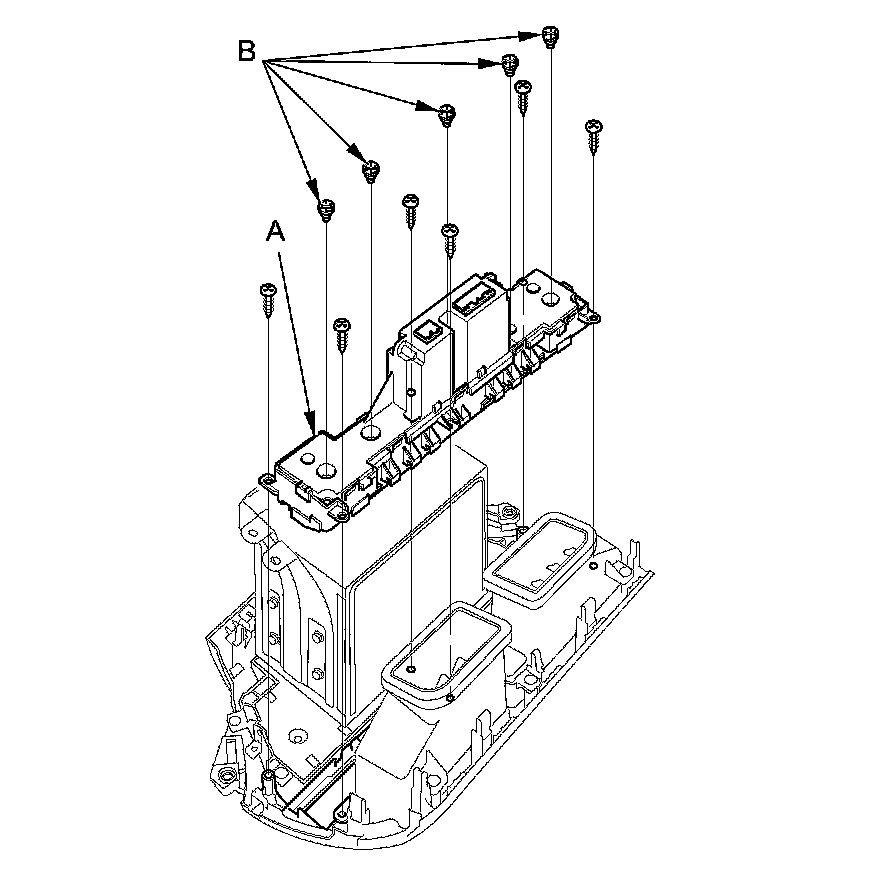

2. Remove the self-tapping screws and the climate control unit (A). If necessary, replace the bulbs (B) with a flat-tip screw driver.





3. Install the control unit in the reverse order of removal.

4. Run the self-diagnostic function to confirm that there are no problems in the system.
