Power Mirror Actuator Test

Remove the door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the power mirror 13P (or 6P)* connector (A).
*: Without power mirror defogger

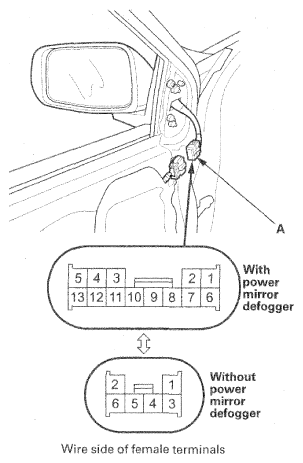

Fig 1: Identifying Power Mirror With 13P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check actuator operation by connecting power and ground according to the table.
Power Mirror Actuator

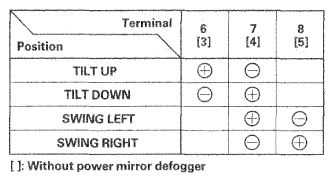

Fig 2: Power Mirror Actuator Connector Operation Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the mirror fails to work properly, check for an open or high resistance in the wire between the connector and the mirror holder. If the wire is OK, replace the power mirror actuator (see POWER MIRROR ACTUATOR REPLACEMENT ).
Defogger Test
Check for continuity between power mirror 13P connector terminals No. 4 and No. 12. There should be continuity. If there is no continuity, remove the mirror holder (see MIRROR HOLDER REPLACEMENT ), and check for an open or high resistance in the wire between the power mirror 13P connector and the mirror defogger terminals (A). If the wire is OK, replace the mirror holder (see MIRROR HOLDER REPLACEMENT ).

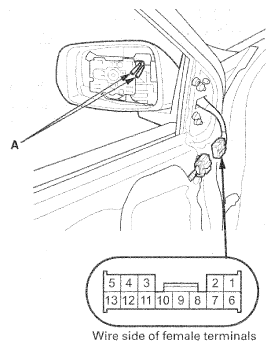

Fig 3: Identifying Power Mirror Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
