EVAP System (R18A1/R18A4)
>>
Component Location Index
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location Index

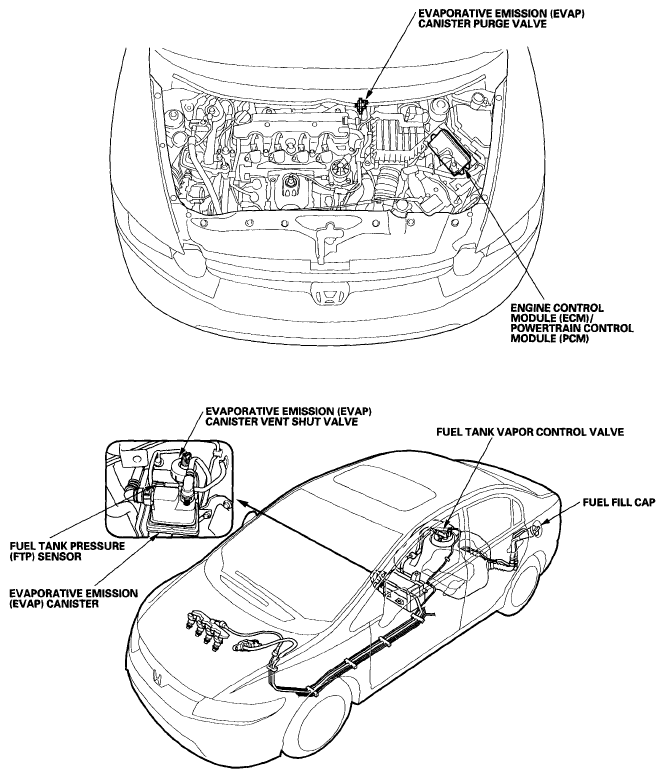

Fig 1: Identifying EVAP System Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
