Voice Control Switch (Navigation) (View 145)
GRN
Steering Wheel
On Cable Reel Sub-harness

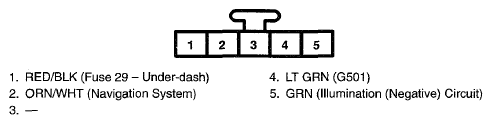

Fig 1: Voice Control Switch (Navigation) Connector Terminal (View 145)
